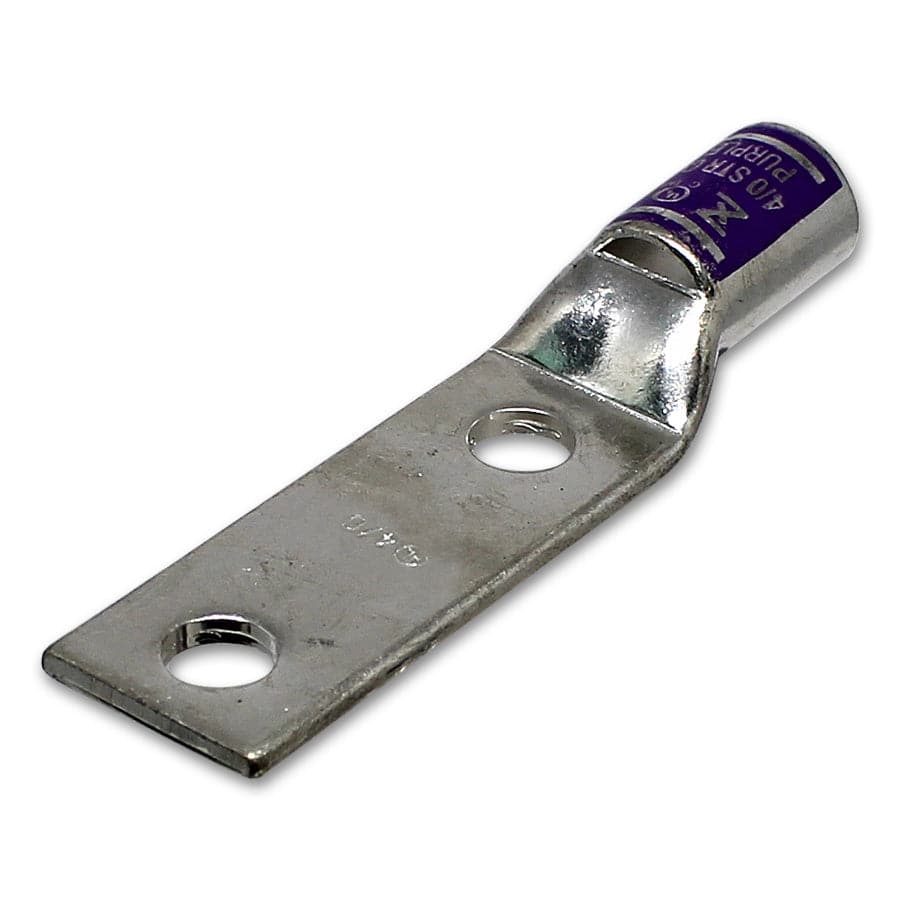

ST4038A - 4/0 AWG Compression Lug - 3/8" Stud Size

Original price $5.63 - Original price $5.63
Original price
$5.63
$5.63 - $5.63
Current price $5.63
SKU ST4038A
Availability:
in stock, ready to be shipped
Piece Quantity: 1 Piece
true
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 4/0 AWG
Color: Purple
L: 99.8mm (3.93")
L1: 65.5mm (2.58")
D: 25.4mm (1.00")
D1: 17.4mm (0.68")
D2: 14.2mm (0.56")
B: 25.4mm (1.00")
E: 10.4mm (0.41")
F: 3.0mm (0.12")
L2: 44.4mm (1.75")
Terminal Material: Tin-Plated Copper
Stud Size: 3/8"
Termperature Rating: 90oC
Voltage Rating: 35KV
Max Amp Rating: 230 Amps
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:
