ST410A - 4AWG Compression Lug - #10 Stud Size - Ferrules Direct

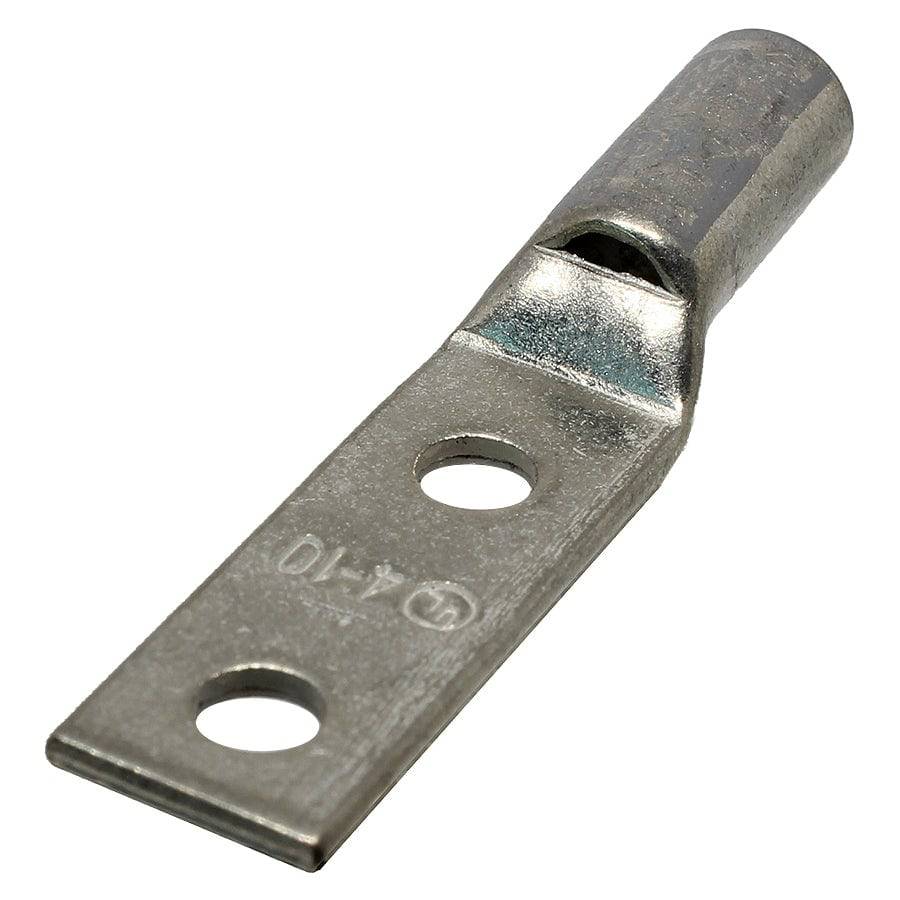

ST410A - 4 AWG Compression Lug - #10 Stud Size, 1 Piece

Name: ST410A - 4 AWG Compression Lug - #10 Stud Size, 1 Piece
Brand: Ferrules Direct
SKU: ST410A
Price: 1.1 USD
Availability: InStock

$1.10 - $1.10

$1.10

$1.10 - $1.10

$1.10

SKU ST410A

Availability:

in stock, ready to be shipped

Quantity

true

TWO-HOLE SHORT BARREL COMPRESSION LUGS

Compression lugs, often also called cable lugs, are designed to terminate copper conductors. Two-hole compression lugs feature two holes for bolting the lug to various components, such as a terminal pad or bus bar. The two-hole design provides greater mechanical stability compared to single-hole lugs. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs can be installed using our crimping tools as well as industry standard ones.

COMPARE TO THESE PARTS:

/* if no javascript: get back ATC button */ body:not(.spo-loaded) [data-shopify="payment-button"], body:not(.spo-loaded).template-product form[action="/cart/add"] [type=submit], body:not(.spo-loaded).template-collection form[action="/cart/add"] [type=submit], body:not(.spo-loaded).template-index form[action="/cart/add"] [type=submit], body:not(.spo-loaded) form[action="/cart/add"] [type=submit] {opacity: 1; pointer-events: all} body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) button, body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) input[type="submit"], body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) input[type="button"], body:not(.spo-loaded) [name="checkout"], body:not(.spo-loaded) [name="goto_pp"], body:not(.spo-loaded) [name="goto_amazon_payments"] {opacity: 1; pointer-events: all}

PRODUCT INFORMATION
Wire Size	4 AWG
Stud Size (E)	#10 Stud
Cut Sheet (PDF)	Download file
Barrel Type	Short Barrel
Material	Tin-Plated Copper
Color	Gray
Overall Length (L)	55.6mm (2.19")
Tab Length (L1)	34.2mm (1.35")
Center-to-Center Spacing (L2)	19.05mm (0.75")
Tab Width (D)	13.7mm (0.54")
Outer Diameter (D1)	9.1mm (0.36")
Inner Diameter (D2)	7.1mm (0.28")
Barrel Length (B)	17.5mm (0.68")
Thickness (F)	1.8mm (0.07")
Seam Style	Seamless
Inspection Hole	Yes
Recommended Conductor Material	Copper (Tin Plated)
Maximum Electrical Rating	35KV
Maximum Electrical Current	65A
UL Recognized	No
CE Certified	Yes
RoHS Compliant	Yes
