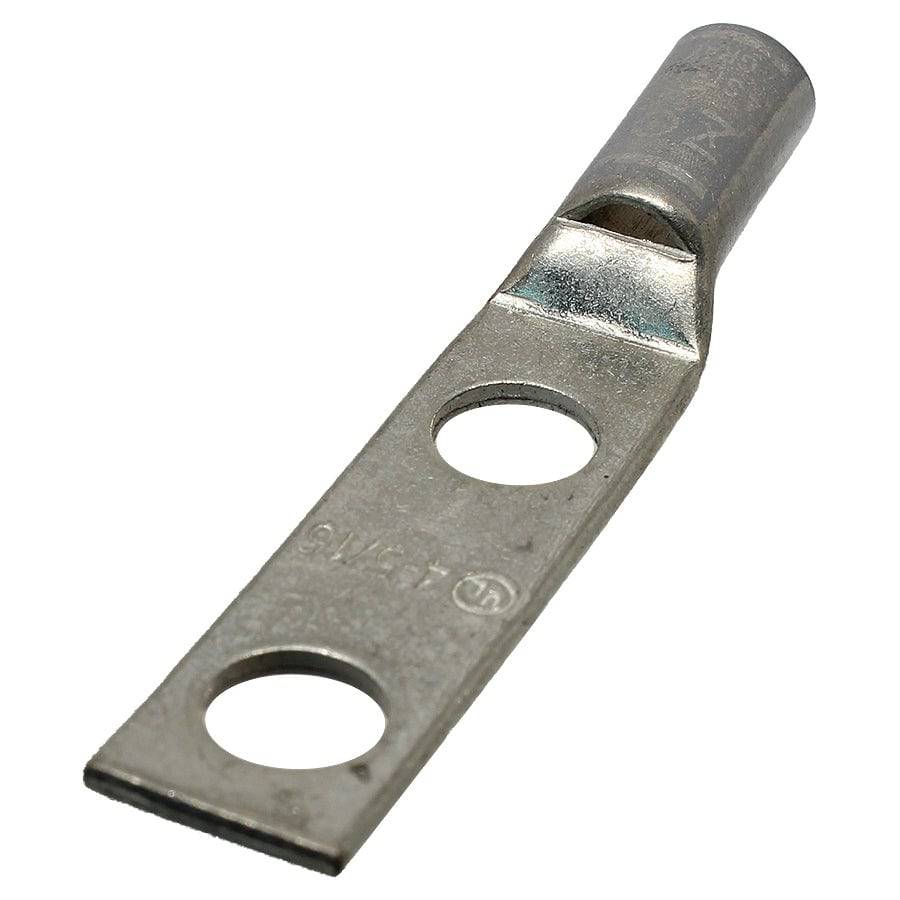

ST4516 - 4AWG Compression Lug - 5/16" Stud Size

Original price $1.25 - Original price $1.25
Original price
$1.25
$1.25 - $1.25
Current price $1.25
SKU ST4516
Availability:
in stock, ready to be shipped
Piece Quantity: 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 4 AWG
Color: Gray
L: 65.7mm (2.59")
L1: 44.4mm (1.75")
L2: 25.4mm (1.00")
D: 13.7mm (0.54")
D1: 9.1mm (0.36")
D2: 7.1mm (0.28")
B: 17.5mm (0.69")
E: 8.7mm (0.34")
F: 1.8mm (0.07")
Terminal Material: Tin-Plated Copper
Stud Size: 5/16"
Temperature Rating: 90oC
Voltage Rating: 35KV
Max Amp Rating: 85 Amps
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:
