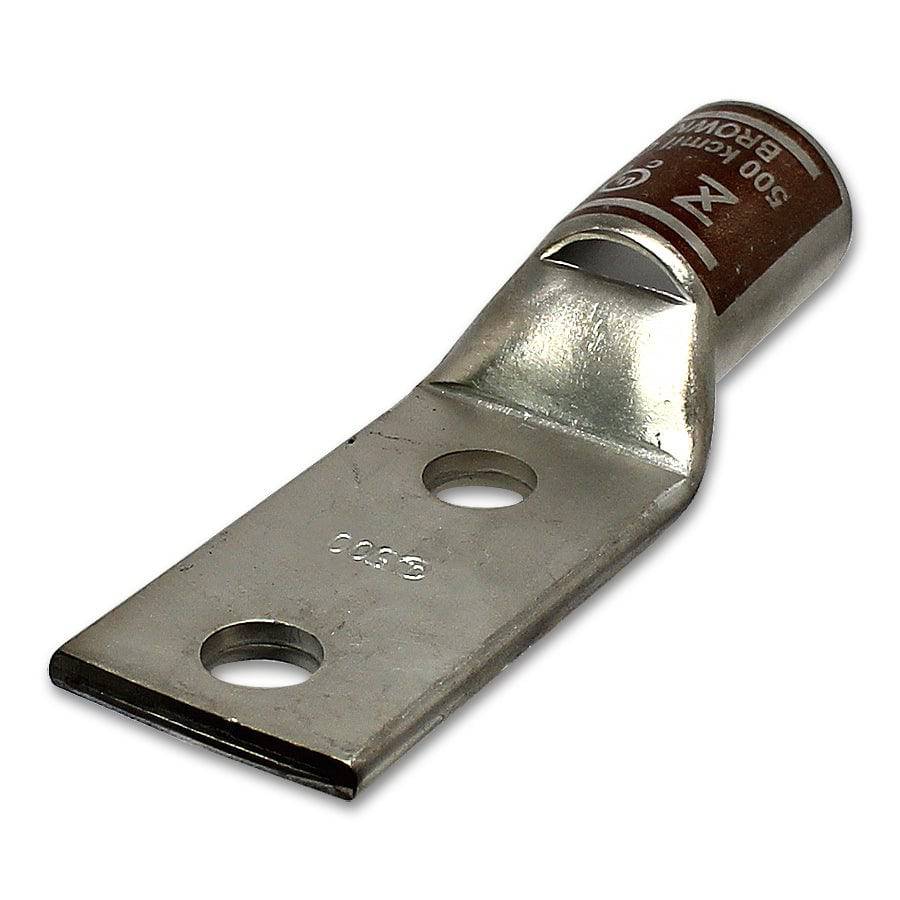

ST50012 - 500MCM Compression Lug - 1/2" Stud Size

Original price $15.04 - Original price $15.04
Original price
$15.04
$15.04 - $15.04
Current price $15.04
SKU ST50012
Availability:
in stock, ready to be shipped
Piece Quantity: 1 Piece
true
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 500MCM
Stud Size: 1/2" Stud
Color: Brown
L: 108mm (4.25")
L1: 71.1mm (2.80")
L2: 44.5mm (1.75")
D: 39.1mm (1.54")
D1: 26.9mm (1.06")
D2: 21.8mm (0.86")
B: 36.8mm (1.45")
E: 12.9mm (0.51")
F: 49.8mm (1.96")
Material: Tin-Plated Copper
Temperature Rating: 90°C
Voltage Rating: 35KV
Max Ampere Rating: 380 Amp
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
