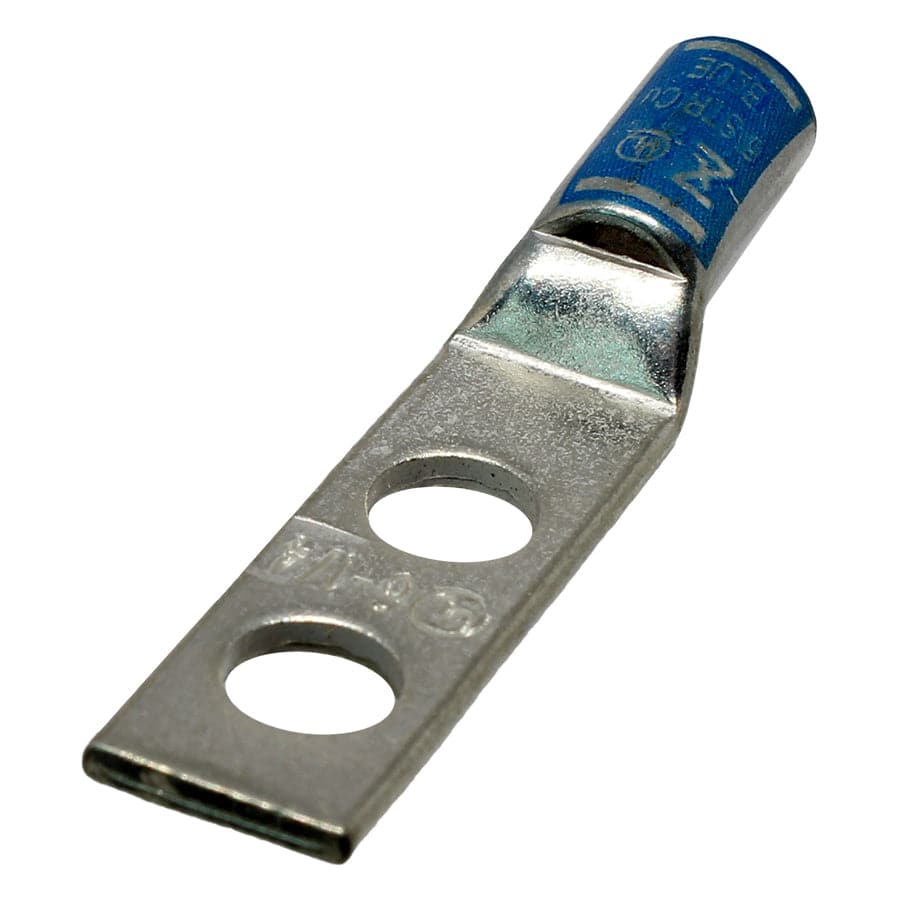

ST614 - 6 AWG Compression Lug - 1/4" Stud Size

Original price $0.80 - Original price $0.80
Original price
$0.80
$0.80 - $0.80
Current price $0.80
SKU ST614
Availability:
in stock, ready to be shipped
Piece Quantity: 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 6 AWG
Stud Size: 1/4" Stud
Color: Blue
L: 48mm (1.89")
L1: 31.1mm (1.23")
L2: 12.7mm (0.50")
D: 11.4mm (0.45")
D1: 7.92mm (0.31")
D2: 5.89mm (0.23")
B: 13.7mm (0.54")
E: 7.11mm (0.28")
F: 1.93mm (0.08")
Terminal Material: Tin-Plated Copper
Temperature Rating: 90°C
Voltage Rating: 35KV
Max Amp Rating: 65A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
