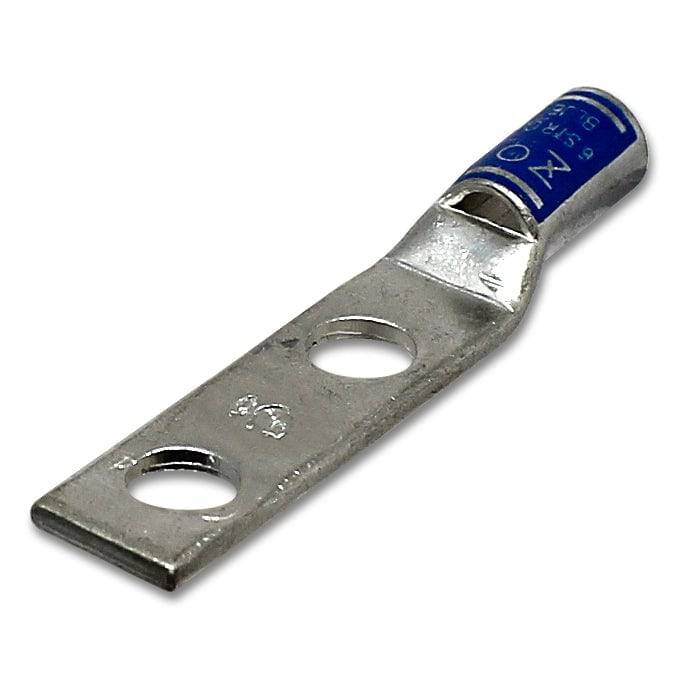

ST614C - 6 AWG Compression Lug - 1/4" Stud Size

Original price $1.01 - Original price $1.01
Original price
$1.01
$1.01 - $1.01
Current price $1.01
SKU ST614C
Availability:
in stock, ready to be shipped
Piece Quantity: 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 6 AWG
Stud Size: 1/4" Stud
Color: Blue
L: 60.7mm (2.39")
L1: 43.8mm (1.73")
L2: 25.4mm (1.00")
D: 11.4mm (0.45")
D1: 7.92mm (0.31")
D2: 5.89mm (0.23")
B: 13.7mm (0.54")
E: 7.11mm (0.28")
F: 1.93mm (0.08")
Terminal Material: Tin-Plated Copper
Temperature Rating: 90°C
Voltage Rating: 35KV
Max Amp Rating: 65A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:
