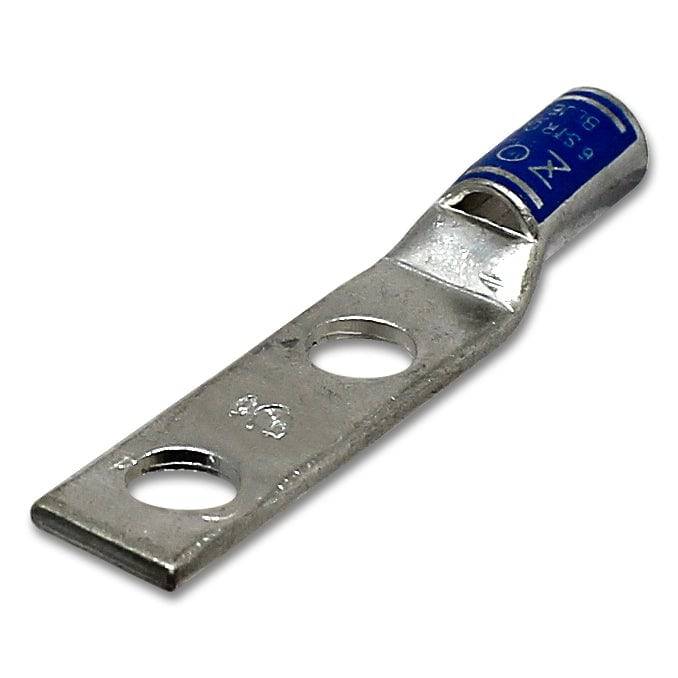

ST638 - 6AWG Compression Lug - 3/8" Stud Size

Original price $1.02 - Original price $1.02
Original price
$1.02
$1.02 - $1.02
Current price $1.02
SKU ST638
Availability:
in stock, ready to be shipped
Piece Quantity: 1 Piece

Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.


Dimensions & Features:

Wire Range: 6 AWG
L: 63.3mm (2.49")
L1: 46.5mm (1.83")
L2: 25.4mm (1.00")
D: 15.2mm (0.60")
D1: 7.9mm (0.31")
D2: 5.8mm (0.23")
B: 12.7mm (0.50")
E: 10.4mm (0.41")
F: 1.4mm (0.06")
Terminal Material: Tin-Plated Copper
Color: Gray
Stud Size: 3/8"
Temperature Rating: 90oC
Voltage Rating: 35KV
Max AMP Rating: 65AMP
UL Recognized: No
CE Certified: Yes
RoHS Compliant: Yes



Technical Drawing:


Cross References

Cross Reference Parts:

Documents

Click to view product spec sheet:

Videos

Check out our YouTube channel!

COMPARE TO THESE PARTS:
