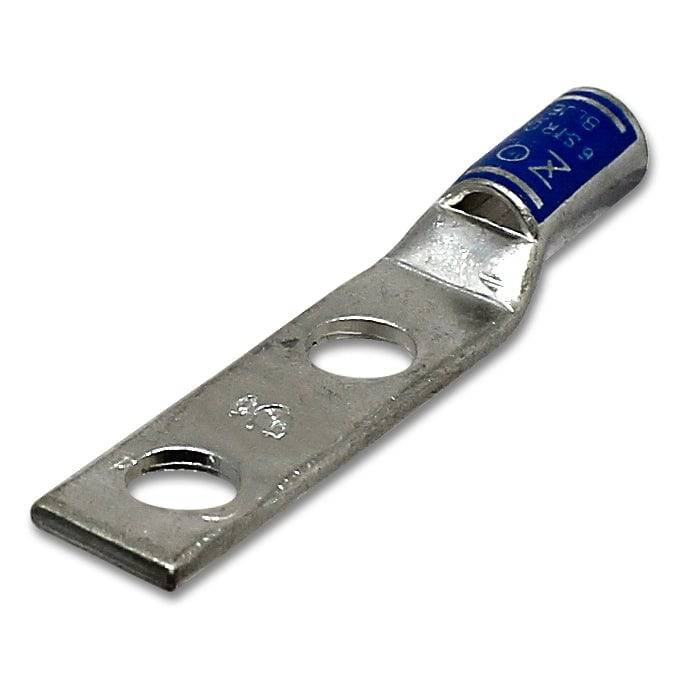

ST6516A - 6 AWG Compression Lug - 5/16" Stud Size
Original price
$1.00
-
Original price
$1.00
Original price
$1.00
$1.00
-
$1.00
Current price
$1.00
SKU ST6516A
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 6 AWG |
| Stud Size: | 5/16" Stud |
| Color: | Blue |
| L: | 61.3mm (2.42") |
| L1: | 44.5mm (1.75") |
| L2: | 25.4mm (1.00") |
| D: | 13.9mm (0.55") |
| D1: | 7.92mm (0.31") |
| D2: | 5.89mm (0.23") |
| B: | 12.7mm (0.50") |
| E: | 8.76mm (0.34") |
| F: | 1.57mm (0.06") |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35KV |
| Max Amp Rating: | 65 Amps |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
