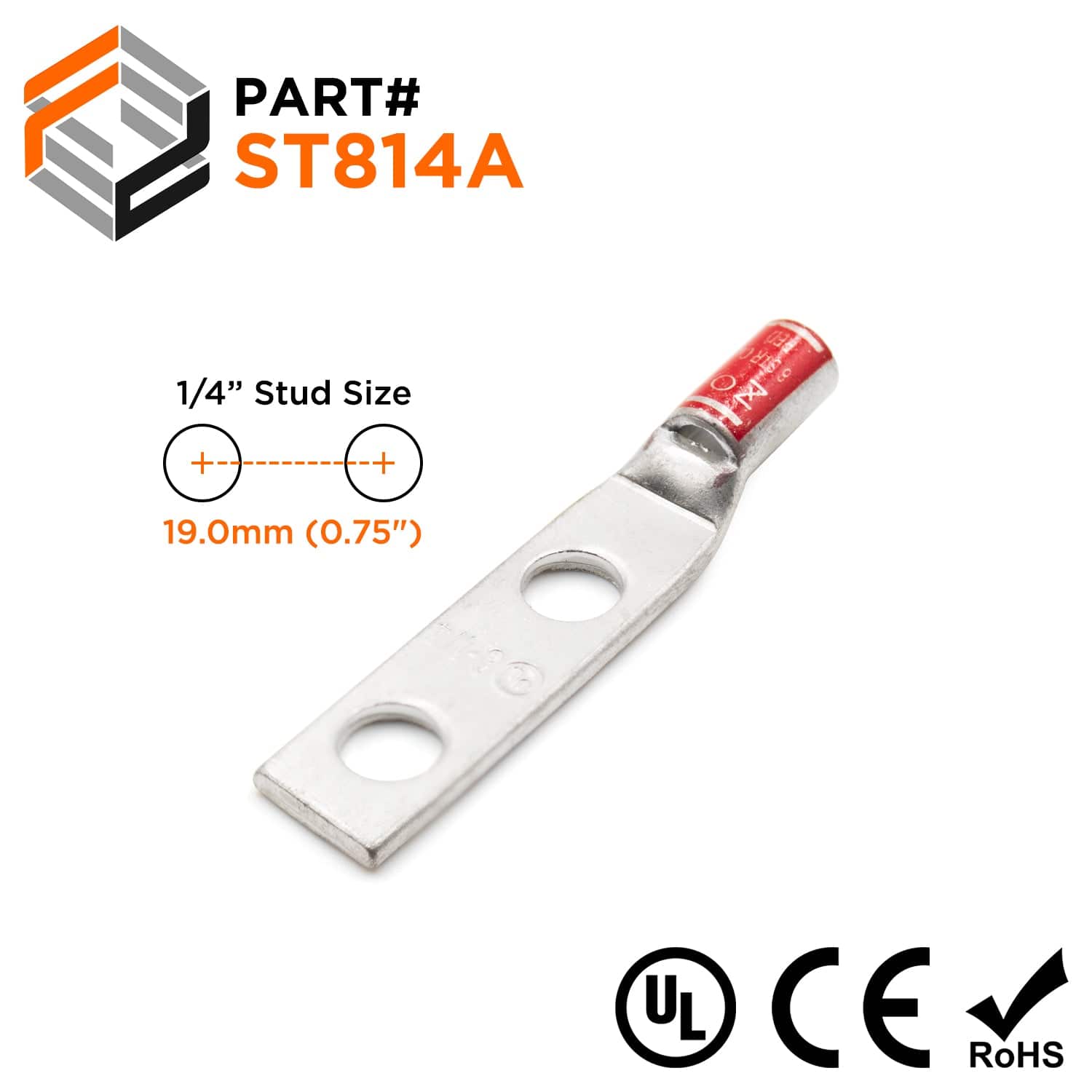

ST814A - 8AWG Compression Lug - 1/4" Stud Size
Original price
$0.85
-
Original price
$0.85
Original price
$0.85
$0.85
-
$0.85
Current price
$0.85
SKU ST814A
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
Wire Size: | 8 AWG |
Stud Size: | 1/4" Stud |
Color: | Red |
L: | 53.3mm (2.10") |
L1: | 37.5mm (1.475") |
L2: | 19.0mm (0.75") |
D: | 11.2mm (0.44") |
D1: | 7.1mm (0.28") |
D2: | 4.8mm (0.19") |
B: | 12.7mm (0.50") |
E: | 7.1mm (0.28") |
F: | 1.9mm (0.75") |
Terminal Material: | Tin-Plated Copper |
Temperature Rating: | 90°C |
Voltage Rating: | 35KV |
Max Amp Rating: | 50A |
UL Recognized: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
