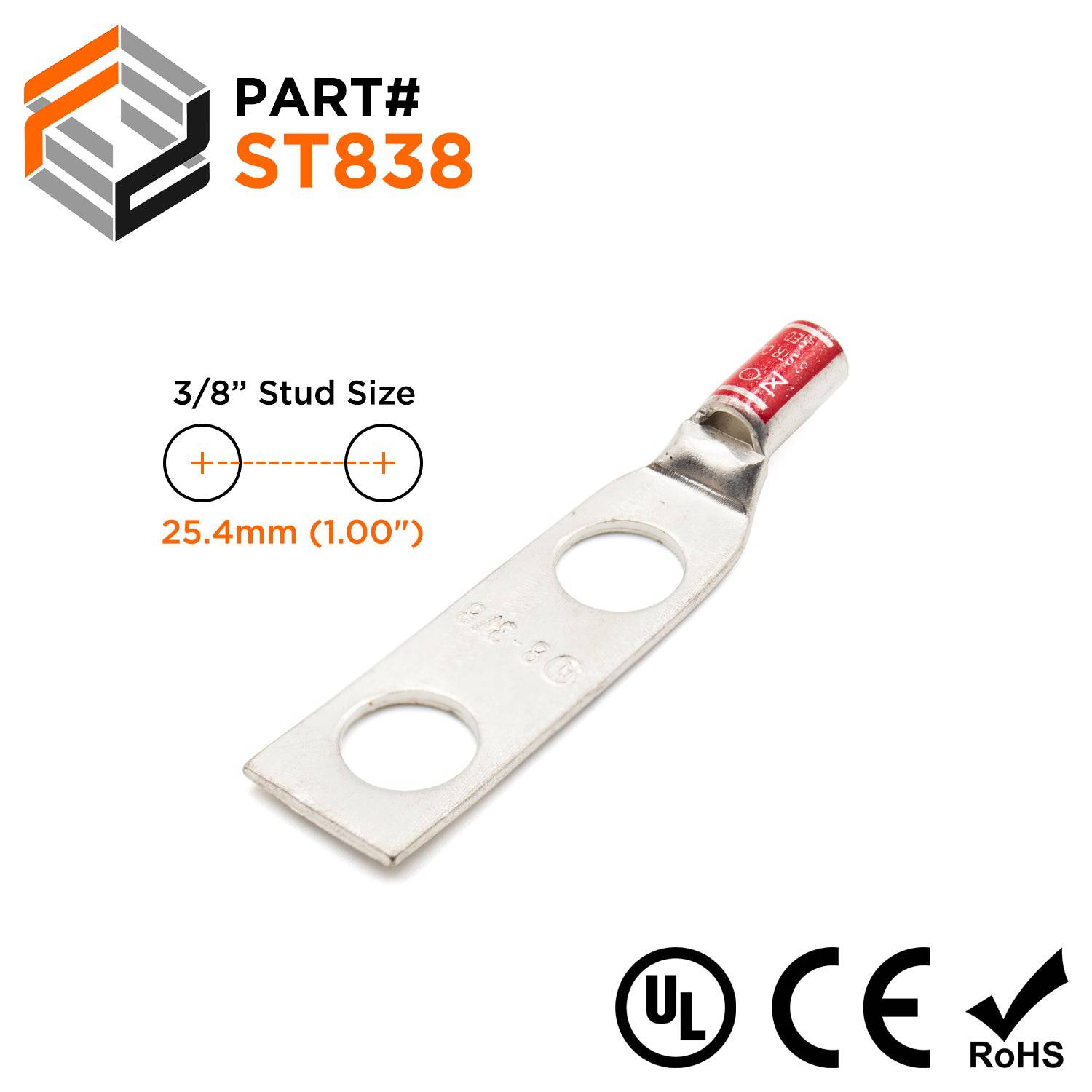

ST838 - 8AWG Compression Lug - 3/8" Stud Size
Original price
$0.97
-
Original price
$0.97
Original price
$0.97
$0.97
-
$0.97
Current price
$0.97
SKU ST838
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 8 AWG |
| Stud Size: | 3/8" Stud |
| Color: | Red |
| L: | 62.3mm (2.45") |
| L1: | 46.5mm (1.83") |
| L2: | 25.4mm (1.00") |
| D: | 15.2mm (0.60") |
| D1: | 7.1mm (0.28") |
| D2: | 4.8mm (0.19") |
| B: | 12.7mm (0.50") |
| E: | 12.7mm (0.51") |
| F: | 1.39mm (0.05") |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35KV |
| Max Amp Rating: | 50A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
