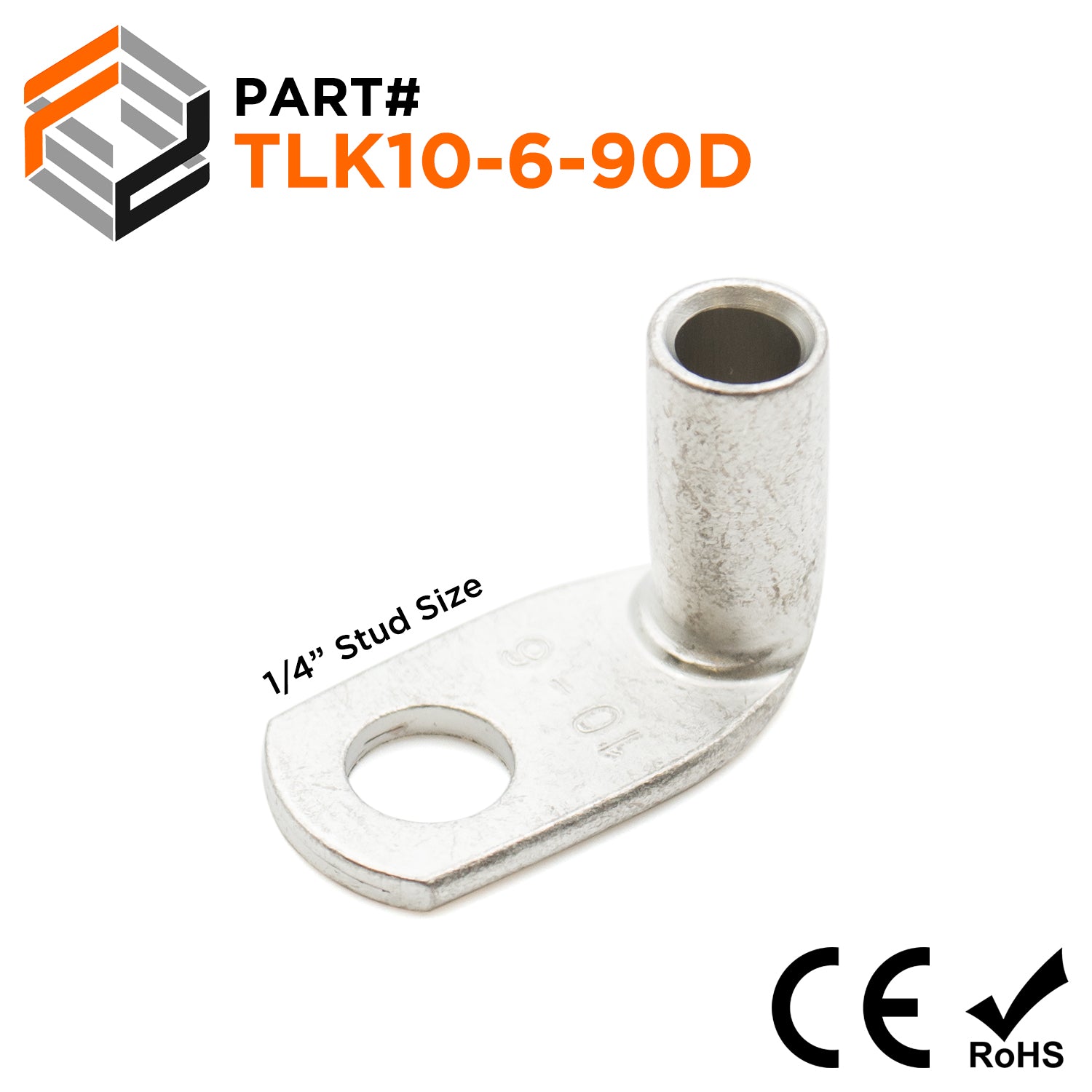

8 AWG Copper Tube Lugs, 90 Degree, 1/4" Stud, Tin Plated - 1/4" Stud, 25 Pieces - TLK10-6-90D

Original price $22.25 - Original price $22.25
Original price
$22.25
$22.25 - $22.25
Current price $22.25
SKU TLK10-6-90D
Availability:
in stock, ready to be shipped
Piece Quantity: 25 Pieces

90 DEGREE COPPER TUBE LUGS

These 90 degree 8 AWG copper tube lugs, with a 1/4" tin-plated stud, provide a reliable and durable connection for electrical wiring. Made with high-quality copper, these lugs offer strong conductivity for optimal performance. Perfect for industrial or commercial use, these lugs ensure a secure connection for all your electrical needs.

Tube lugs (also known as tubular lugs) differ from compression lugs mainly in terms of their dimensions. They are typically shorter and are not color coded.

DIMENSIONS & FEATURES:

Wire Size: 8 AWG
Stud Size: 1/4" Stud
A: 0.39" (10.0mm)
B: 0.47" (12.0mm)
C1: 0.26" (6.5mm)
C2: 0.39" (10.0mm)
D1: 0.18" (4.5mm)
D2: 0.251" (6.4mm)
D3: 0.28" (7.0mm)
Terminal Material: Tin-Plated Copper
Insulation Material: None
Temperature Rating: 75°C
Voltage Rating: 600 Volts
Max Electrical Current: 70 Amps
UL Approved: No
CE Certified: Yes
RoHS Compliant: Yes

DRAWING:





COMPARE TO THESE PARTS:
