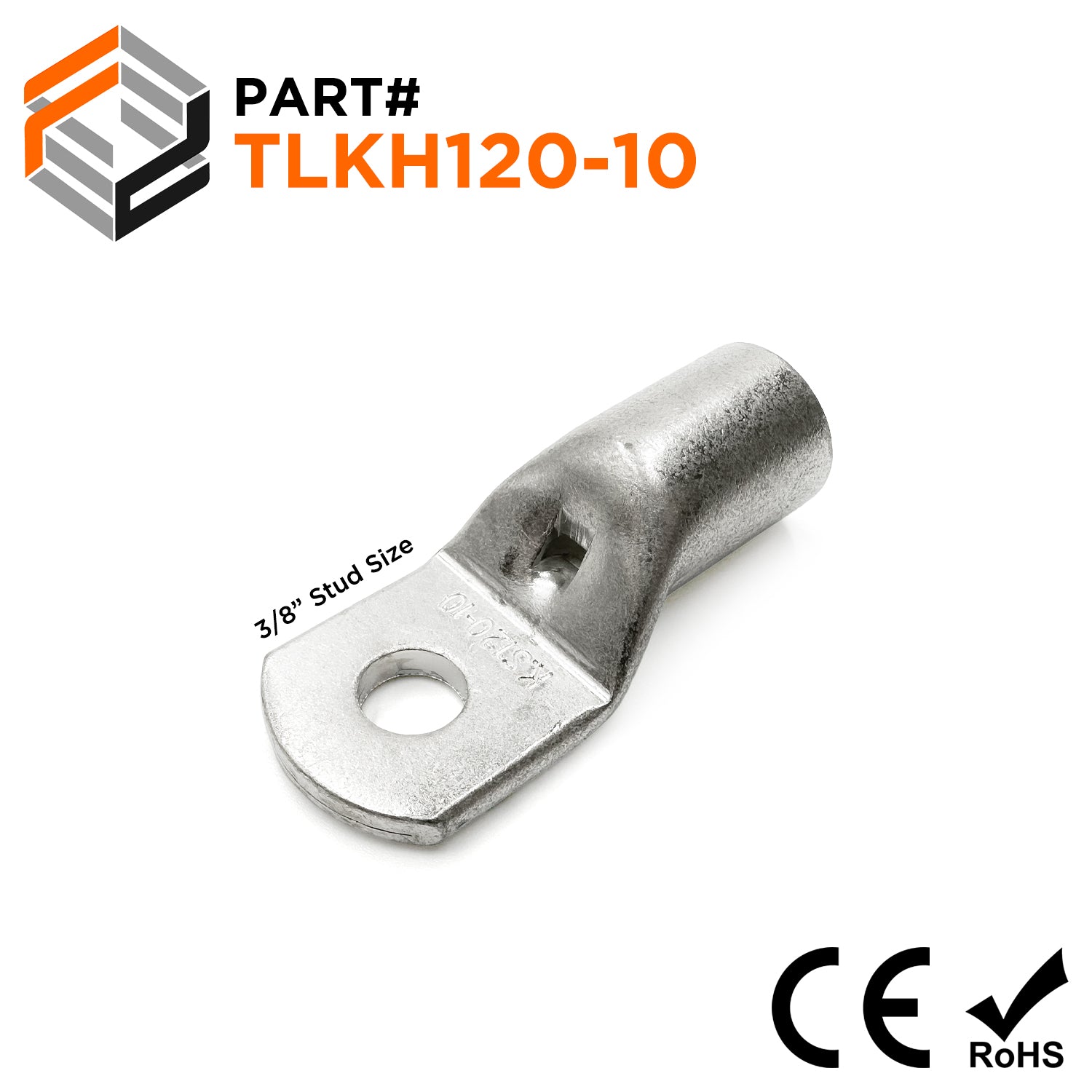

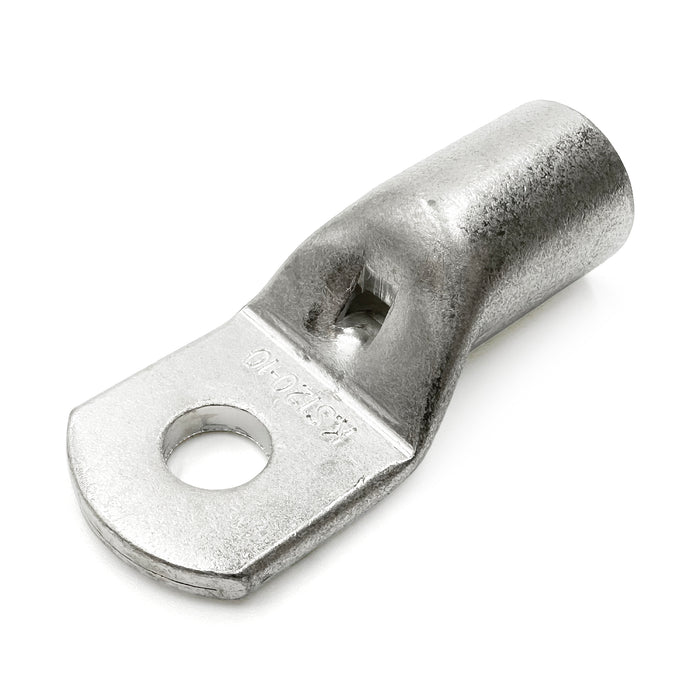

TLKH120-10 - Compression Lugs TLKH Series - 4/0AWG

$72.45
SKU TLKH120-10
Piece Quantity
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 4/0 AWG
Stud Size: 3/8 Stud
F: 26.0mm (1.02")
W: 28.0mm (1.10")
L: 51.0mm (2.00")
D: 19.5mm (0.77")
D1: 15.0mm (0.59")
D2: 10.5mm (0.41")
Terminal Material: Tin-Plated Copper
Insulation Material: None
Temperature Rating: 75°C
Voltage Rating: 600 Volts
Max Electrical Current: 360 Amps
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None


Documents

Click to view product spec sheet:
