TLKH50-10 - Compression Lugs TLKH Series - 1/0AWG - Ferrules Direct

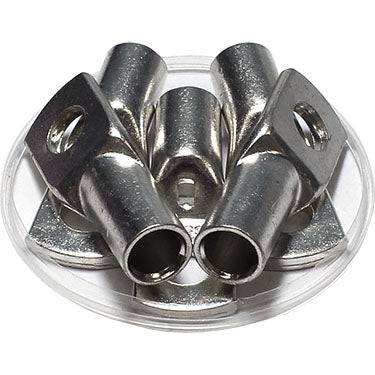

TLKH50-10 - Compression Lugs TLKH Series - 1/0AWG, 25 Pieces

Name: TLKH50-10 - Compression Lugs TLKH Series - 1/0AWG, 25 Pieces
Brand: Ferrules Direct
SKU: TLKH50-10
Price: 85.56 USD
Availability: InStock

$85.56 - $85.56

$85.56

$85.56 - $85.56

$85.56

SKU TLKH50-10

Pack Quantity: 25 Pieces

Availability:

in stock, ready to be shipped

Quantity

true

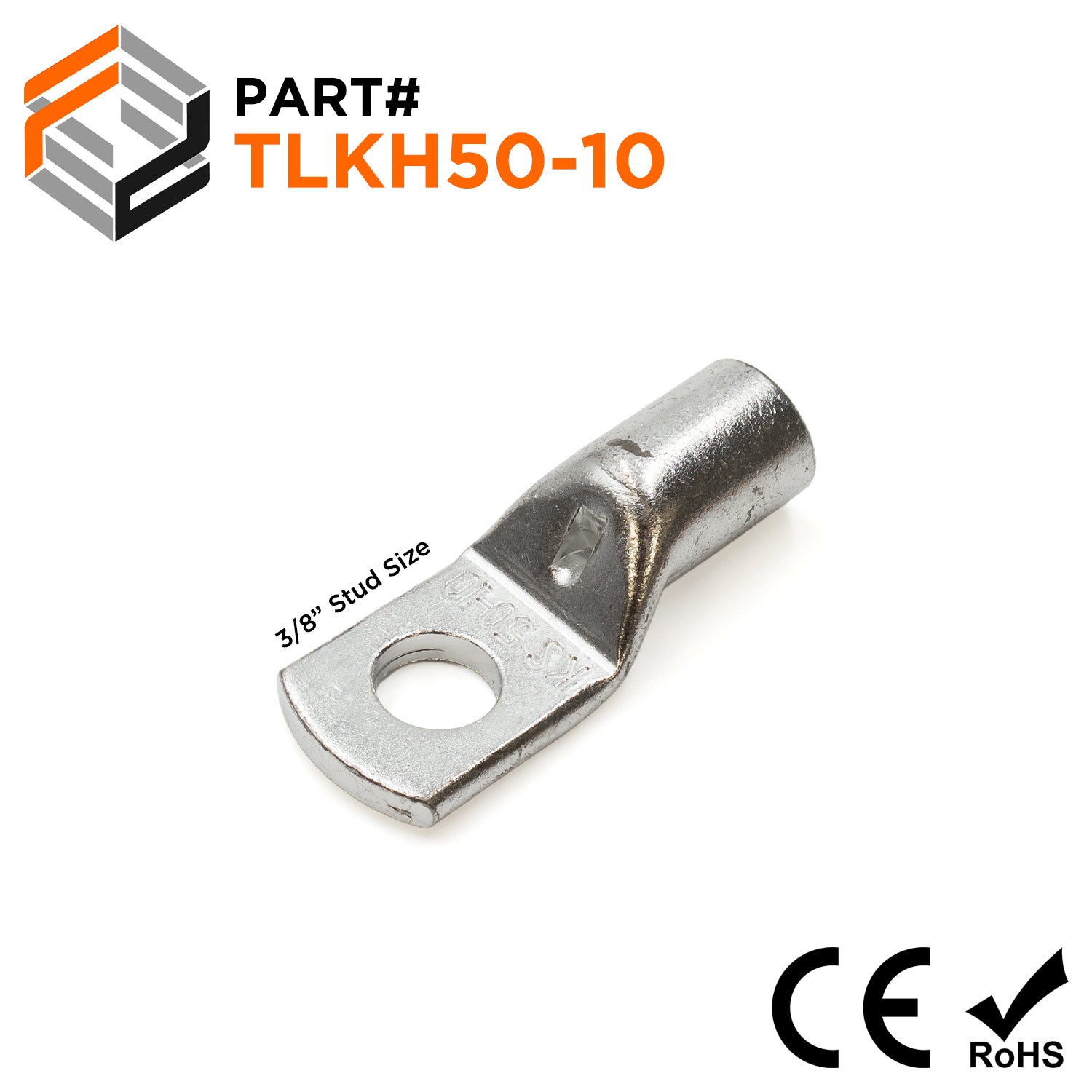

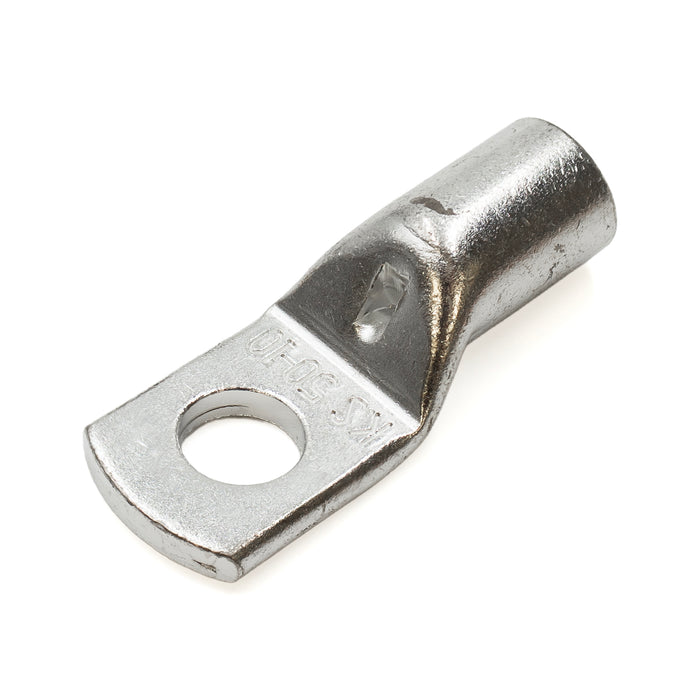

TUBULAR CABLE LUGS

Tubular lugs are heavy duty electrical conductors used to terminate a power cable so it can be securely bolted to a terminal stud, busbar, battery post, or various other applications. Each lug is tin plated to provide protection against corrosion and prevent oxidation.

COMPARE TO THESE PARTS:

/* if no javascript: get back ATC button */ body:not(.spo-loaded) [data-shopify="payment-button"], body:not(.spo-loaded).template-product form[action="/cart/add"] [type=submit], body:not(.spo-loaded).template-collection form[action="/cart/add"] [type=submit], body:not(.spo-loaded).template-index form[action="/cart/add"] [type=submit], body:not(.spo-loaded) form[action="/cart/add"] [type=submit] {opacity: 1; pointer-events: all} body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) button, body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) input[type="submit"], body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) input[type="button"], body:not(.spo-loaded) [name="checkout"], body:not(.spo-loaded) [name="goto_pp"], body:not(.spo-loaded) [name="goto_amazon_payments"] {opacity: 1; pointer-events: all}

PRODUCT INFORMATION
Wire Size	1/O AWG
Stud Size	3/8" Stud
Cut Sheet (PDF)	Download file
Overall Length (L)	39.0mm (1.54")
Barrel Length (F)	19.0mm (0.75")
Outside Diameter (D)	14.0mm (0.55")
Inside Diameter (D1)	10.0mm (0.39")
Stud Hole Diameter (D2)	10.5mm (0.41")
Tab Width (W)	20.0mm (0.79")
Material	Tin Plated Copper
Maximum Operating Temperature	75°C
Maximum Electrical Rating	600 Volts
Maximum Electrical Current	230 AMP
CE Certified	Yes
RoHS Compliant	Yes
REACH Compliant	Yes
Recommended Hand Tools	FDZ400 \| FDHX150 \| FDCT150
Recommended Crimping Machines	FEK50 \| FD300K

PRODUCT INFORMATION
Highlight differences	TLKH50-10 - Compression Lugs TLKH Series - 1/0AWG, 25 Pieces$85.56
Wire Size	1/O AWG
Stud Size	3/8" Stud
Cut Sheet (PDF)	Download file
Overall Length (L)	39.0mm (1.54")
Barrel Length (F)	19.0mm (0.75")
Outside Diameter (D)	14.0mm (0.55")
Inside Diameter (D1)	10.0mm (0.39")
Stud Hole Diameter (D2)	10.5mm (0.41")
Tab Width (W)	20.0mm (0.79")
Material	Tin Plated Copper
Maximum Operating Temperature	75°C
Maximum Electrical Rating	600 Volts
Maximum Electrical Current	230 AMP
CE Certified	Yes
RoHS Compliant	Yes
REACH Compliant	Yes
Recommended Hand Tools	FDZ400 \| FDHX150 \| FDCT150
Recommended Crimping Machines	FEK50 \| FD300K
