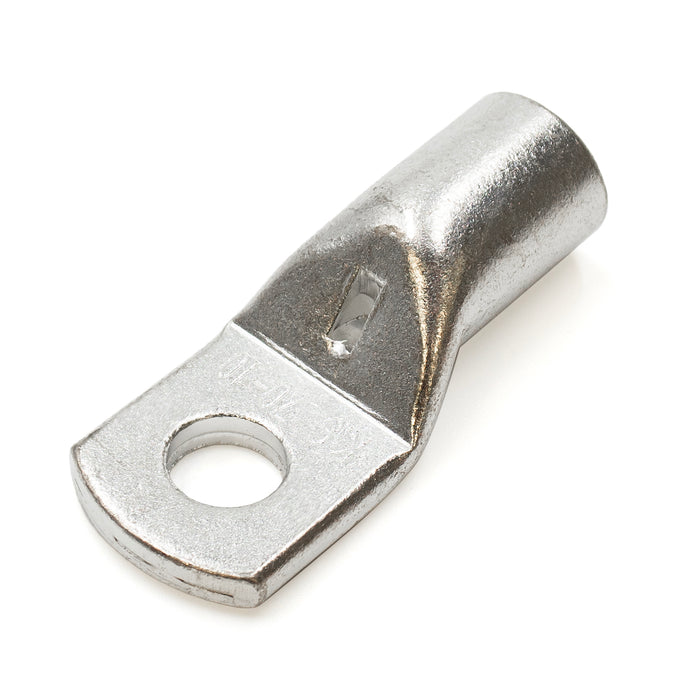

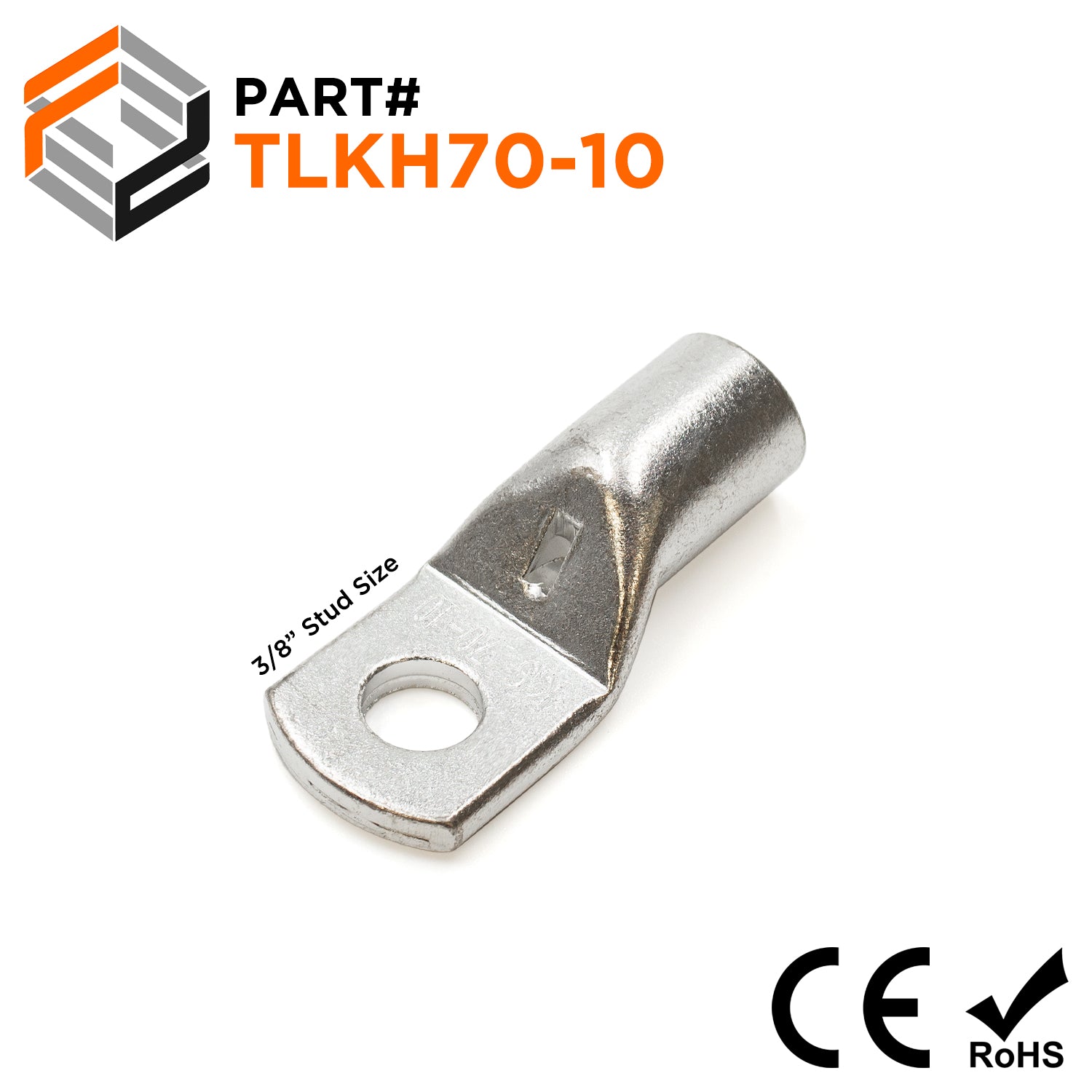

TLKH70-10 - Compression Lugs TLKH Series - 2/0AWG

Original price $135.85 - Original price $135.85
Original price
$135.85
$135.85 - $135.85
Current price $135.85
SKU TLKH70-10
Availability:
in stock, ready to be shipped
Piece Quantity: 25 Pieces
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 2/0 AWG
Stud Size: 3/8 Stud
F: 21.0mm (0.75")
W: 23.0mm (0.90")
L: 44.0mm (1.73")
D: 16.5mm (0.65")
D1: 12.0mm (0.47")
D2: 10.5mm (0.41")
Terminal Material: Tin-Plated Copper
Insulation Material: None
Temperature Rating: 75°C
Voltage Rating: 600 Volts
Max Electrical Current: 265 Amps
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None
