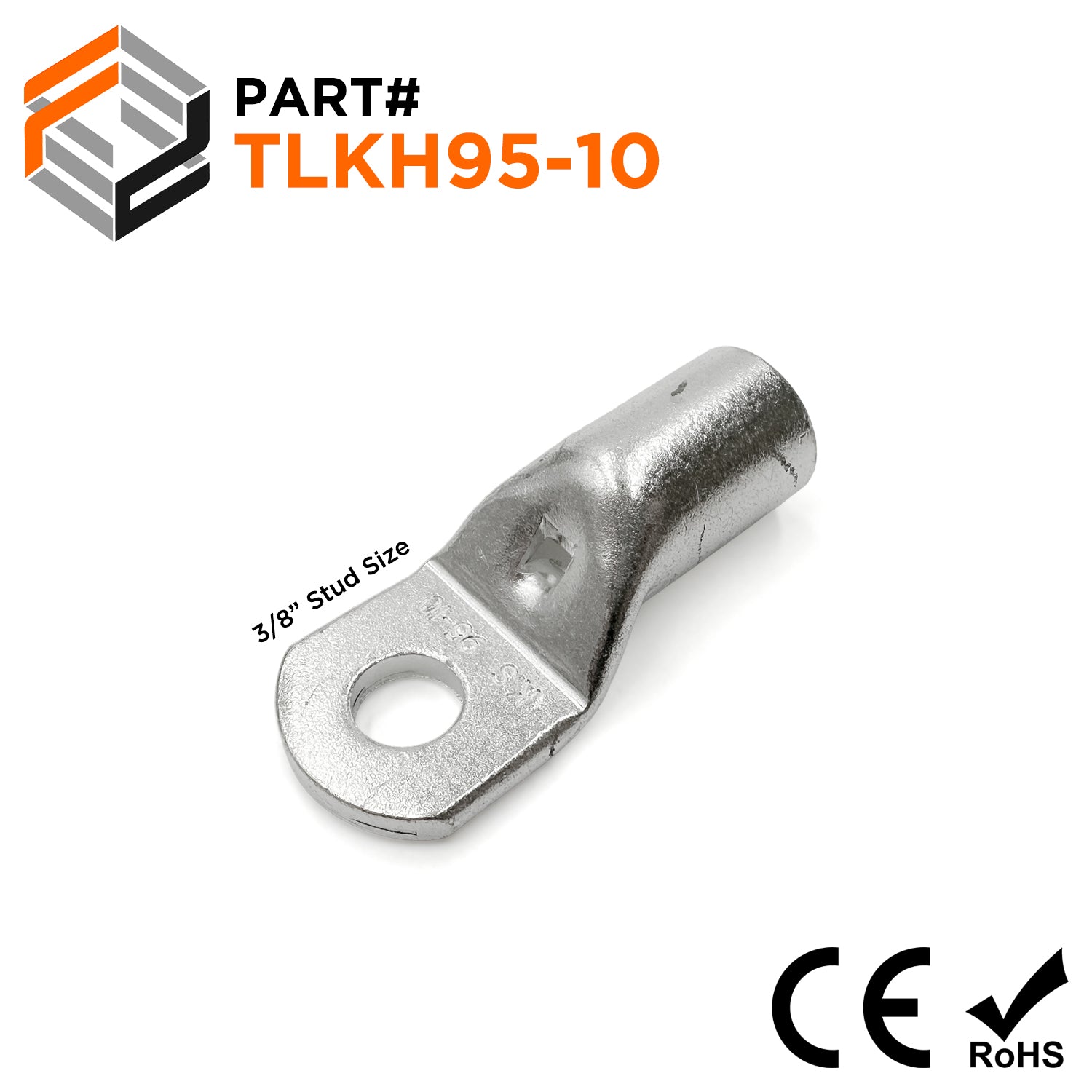

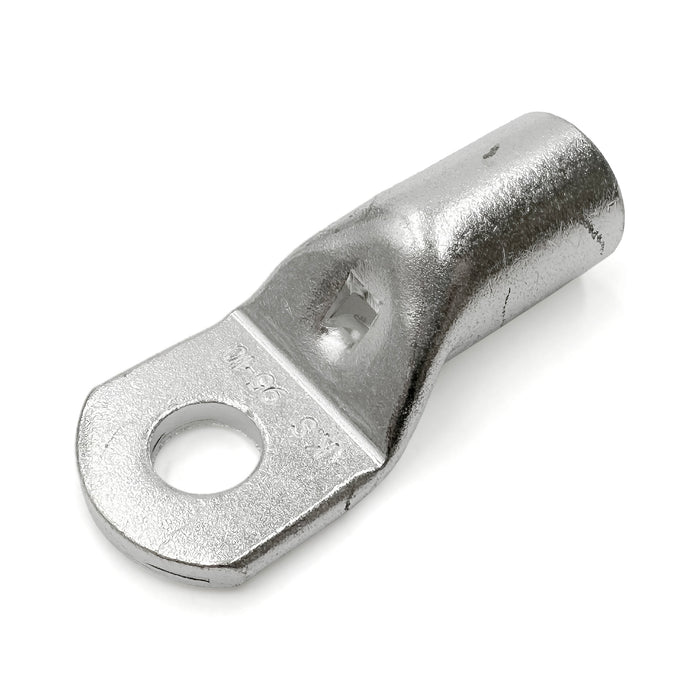

TLKH95-10 - Compression Lugs TLKH Series - 3/0

$60.38
SKU TLKH95-10
Piece Quantity
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 3/0 AWG
Stud Size: 3/8 Stud
F: 25.0mm (0.98")
W: 26.0mm (0.79")
L: 48.0mm (1.89")
D: 18.0mm (0.71")
D1: 13.5mm (0.53")
D2: 10.5mm (0.41")
Terminal Material: Tin-Plated Copper
Insulation Material: None
Temperature Rating: 75°C
Voltage Rating: 600 Volts
Max Electrical Current: 310 Amps
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:
