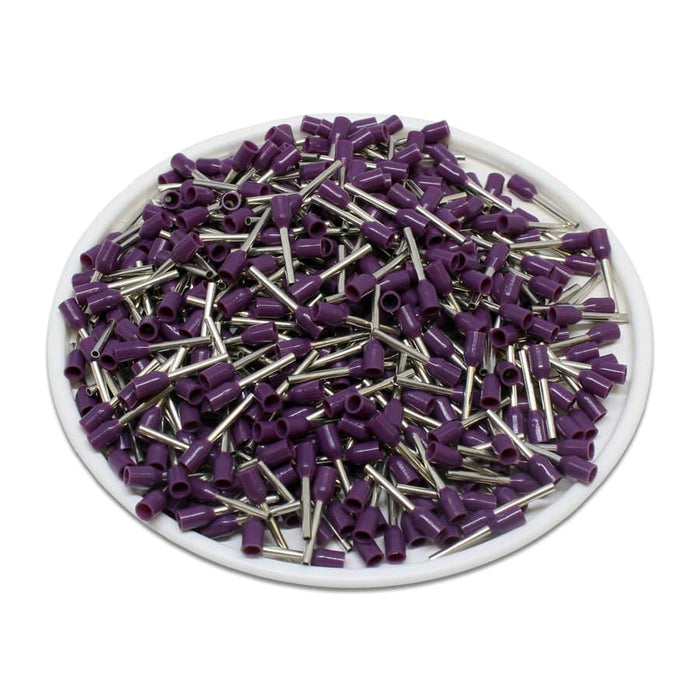

AD02508 - 24 AWG (8mm Pin) Insulated Ferrules - Purple

Precio original $9.84 - Precio original $9.84
Precio original
$9.84
$9.84 - $9.84
Precio actual $9.84
SKU AD02508
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 500 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

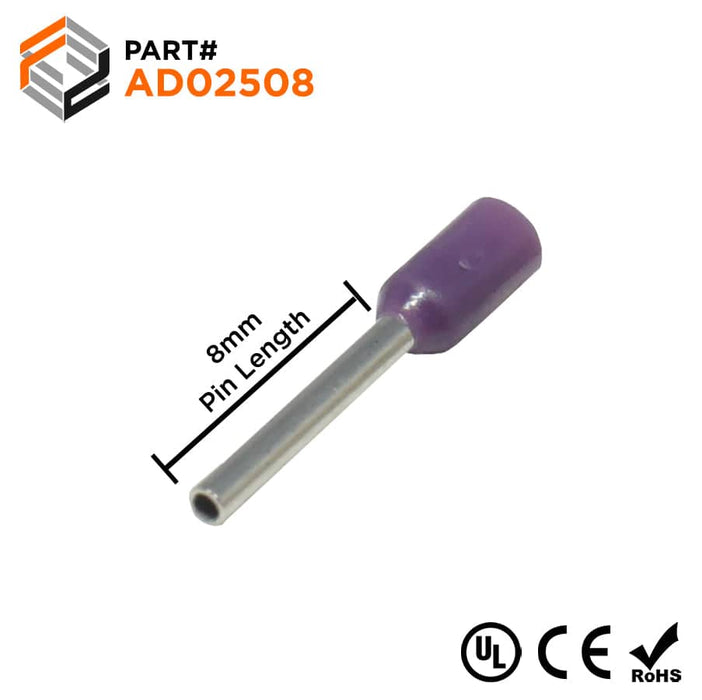

Dimensions & Features:

Wire Size: 24 AWG
Color: Violet
L1: 12.4mm (0.488")
L2: 8.0mm (0.315")
D: 1.1mm (0.043")
D1: 0.8mm (0.031")
D2: 1.6mm (0.062")
UL Approved: Yes
CE Certfied: Yes
RoHS Compliant: Yes
Max Electrical Rating: 105oC (221oF) - 600 Volts
Max Electrical Current: 7A

Technical Drawing:


Cross References

American Electrical: 11630025
Panduit: FSF73-6-D
Thomas Betts: F4008
ZF: V3AE1662
