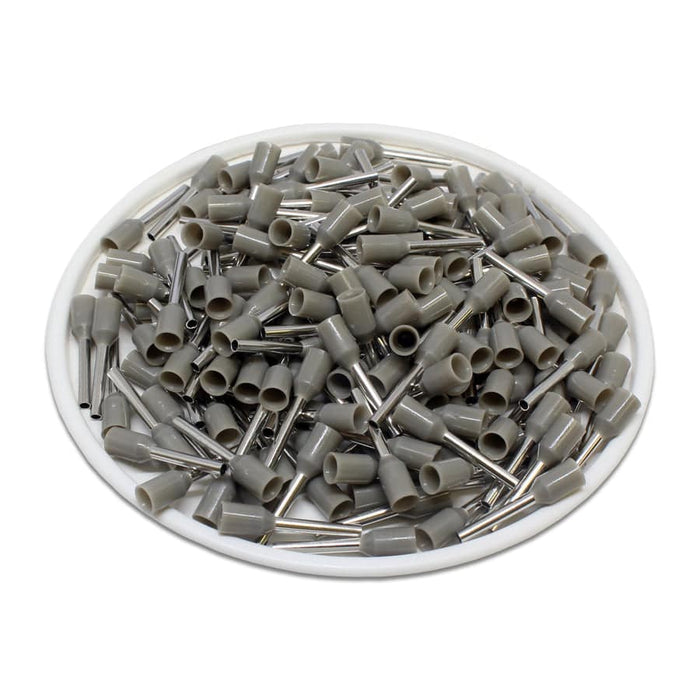

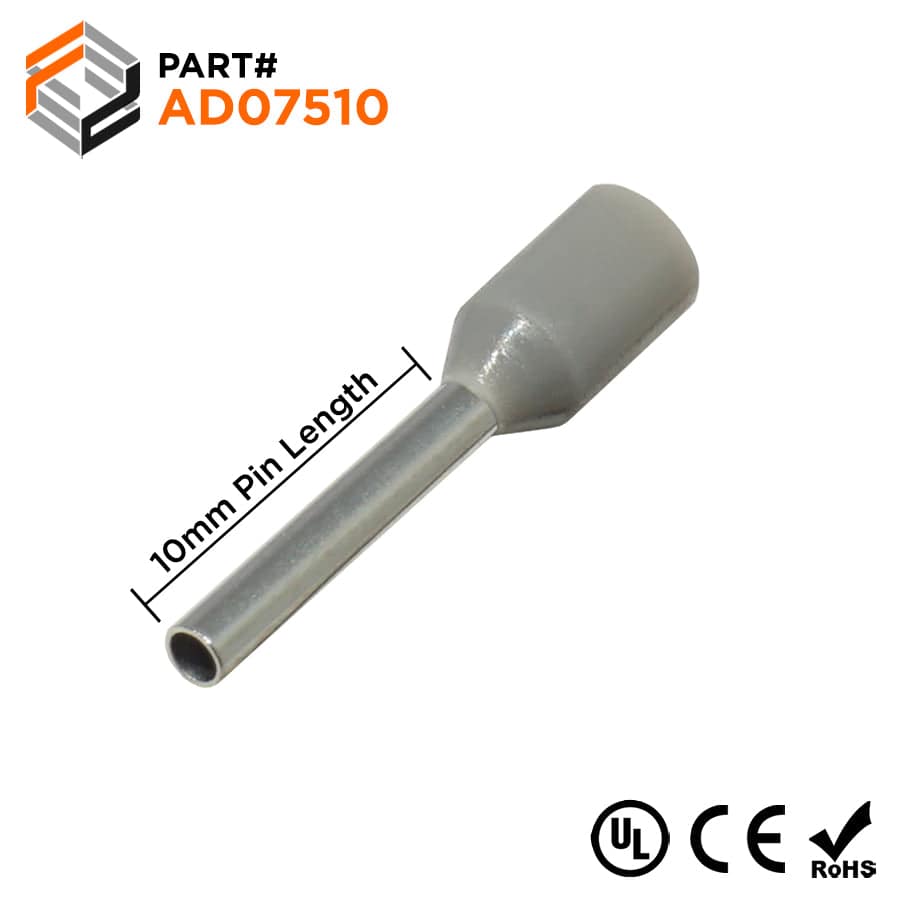

AD07510 - 20 AWG (10mm Pin) Insulated Ferrules - Gray
Precio original
$7.37
-
Precio original
$7.37
Precio original
$7.37
$7.37
-
$7.37
Precio actual
$7.37
SKU AD07510
Disponibilidad:
en stock, listo para ser enviado
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Altech Corp: 2868.0 FID1810GR
American Electrical: 11101075
Greenlee: 470/10
McMaster-Carr: 7950K86 7950K16
Panduit: FSD76-10-D
Phoenix Contact: 3203118 3201288
Power Phase - Fastenal: 0749605
Thomas Betts: F2025
Tyco AMP: 966 067-6
WAGO: 216-242
Weidmuller: 9019050000
ZF: V3AE0042
Dimensions & Features:
| Wire Size: | 20 AWG |
| Color: | Gray |
| L1: | 16.0mm (0.630") |
| L2: | 10.0mm (0.394") |
| D: | 1.57mm (0.062") |
| D1: | 1.2mm (0.047") |
| D2: | 2.8mm (0.110") |
| UL Approved: | Yes |
| CE Certfied: | Yes |
| RoHS Compliant: | Yes |
| Max Electrical Rating: | 105oC (221oF) - 600 Volts |
| Max Electrical Current: | 17A |
| Material: | Tin-Plated Copper |
Technical Drawing:
Cross References
ABB: XUSD01842Altech Corp: 2868.0 FID1810GR
American Electrical: 11101075
Greenlee: 470/10
McMaster-Carr: 7950K86 7950K16
Panduit: FSD76-10-D
Phoenix Contact: 3203118 3201288
Power Phase - Fastenal: 0749605
Thomas Betts: F2025
Tyco AMP: 966 067-6
WAGO: 216-242
Weidmuller: 9019050000
ZF: V3AE0042
Documents
Click to view data sheet
Videos
How to Crimp a Wire Ferrule?
