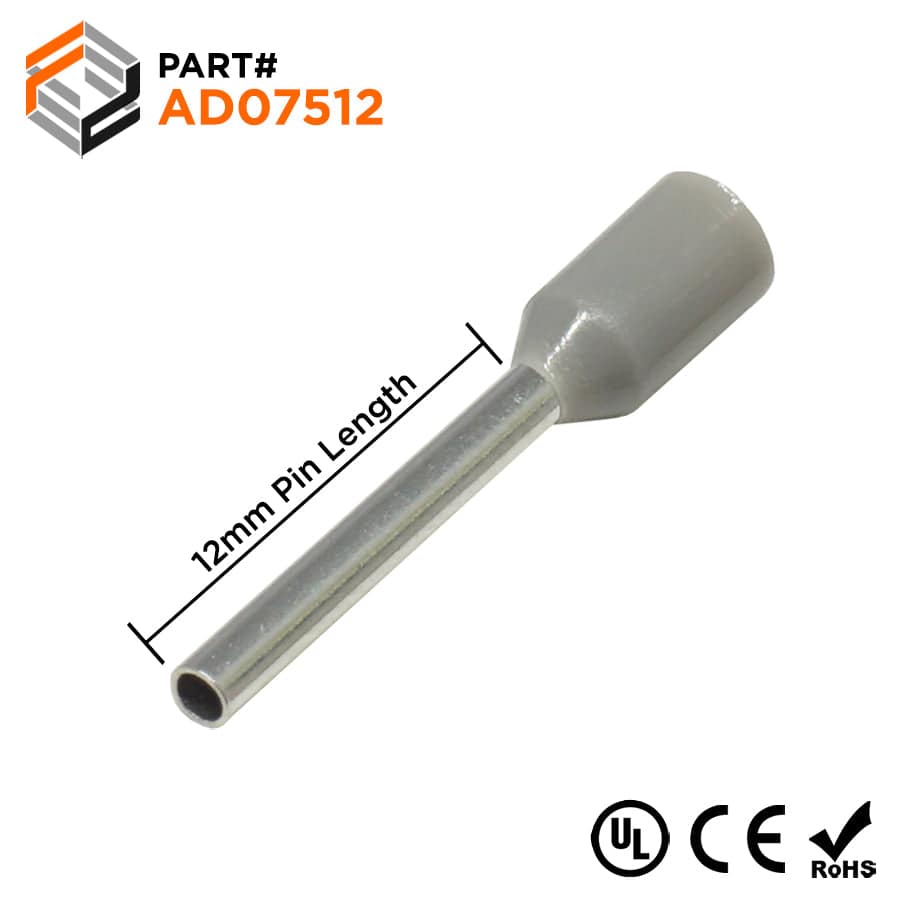

AD07512 - 20 AWG (12mm Pin) Insulated Ferrules - Gray
Precio original
$7.68
-
Precio original
$7.68
Precio original
$7.68
$7.68
-
$7.68
Precio actual
$7.68
SKU AD07512
Disponibilidad:
en stock, listo para ser enviado
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Product Drawing:
ABB: XUSD01845
Altech Corp: 2869.0 FID1812GR
American Electrical: 11121075
Elecdirect: FER-20-12D
Greenlee: 470/12
McMaster-Carr: 7950K87 7950K17
Panduit: FSD76-12-D
Phoenix Contact: 3200849
Thomas Betts: F2026
Tyco AMP: 966 067-7
WAGO: 216-262
Weidmuller: 9019060000
ZF: V3AE0043
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 20 AWG |
| Color: | Gray |
| L1: | 18mm (0.71") |
| L2: | 12mm (0.47") |
| D: | 1.57mm (0.062") |
| D1: | 1.2mm (0.047") |
| D2: | 2.8mm (0.110") |
| Material: | Tin Plated Copper |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
| Max Electrical Rating: | 105°C (221°F) - 600V |
| Max Electrical Current: | 17A |
Product Drawing:
Cross References
Cross Reference Parts:ABB: XUSD01845
Altech Corp: 2869.0 FID1812GR
American Electrical: 11121075
Elecdirect: FER-20-12D
Greenlee: 470/12
McMaster-Carr: 7950K87 7950K17
Panduit: FSD76-12-D
Phoenix Contact: 3200849
Thomas Betts: F2026
Tyco AMP: 966 067-7
WAGO: 216-262
Weidmuller: 9019060000
ZF: V3AE0043
Documents
Click to view product spec sheet:
