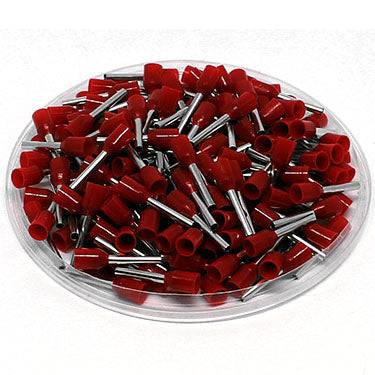

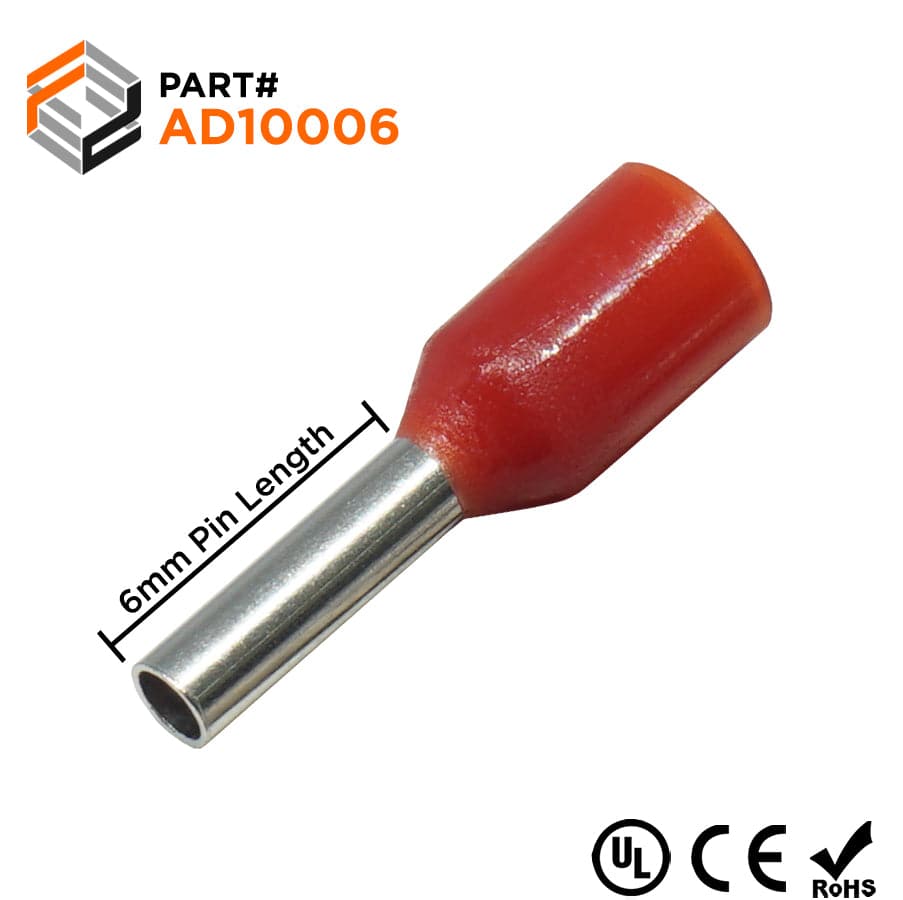

AD10006 - 18AWG (6mm Pin) Insulated Ferrules - Red

Precio original $0.00 - Precio original $7.22
Precio original
$0.00 - $7.22
Precio actual $7.22
SKU AD10006
Pack Quantity: 500 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 18 AWG
Color: Red
Material: Tin Plated Copper
Max Electrical Rating: 105°C - 600 Volts
Max Electrical Current: 18A
L1: 12.0mm (0.47")
L2: 6.0mm (0.24")
D: 1.7mm (0.06")
D1: 1.4mm (0.05")
D2: 2.8mm (0.11")
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

ABB: XUSD01848
Altech Corp: 2870.0 FID1806R
American Electrical: 1163010
Greenlee: 471/6
McMaster-Carr: 7950K89 7950K71
Panduit: FSF77-6-D FSD77-6-D
Phoenix Contact: 3200742
Power Phase - Fastenal: 0749607

SPC Technology: SPC4511 84N2045
Thomas Betts: F2027
Tyco AMP: 966 067-8
WAGO: 216-223
Weidmuller: 9019070000
ZF: V3AE0044
