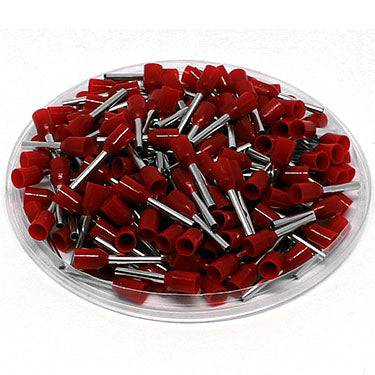

AD10012 - 18AWG (12mm Pin) Insulated Ferrules - Red
Agotado
Precio original
$0.00
-
Precio original
$8.28
Precio original
$8.28
$0.00
-
$8.28
Precio actual
$8.28
SKU AD10012
Disponibilidad:
Agotado
Disponibilidad:
Agotado
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Product Drawing:
ABB: XUSD01855
Altech Corp: 2840.0 FID1812R
American Electrical: 11121010 11123010
Eclipse: 701-117
Elecdirect: FER-18-12D
Greenlee: 471/12
McMaster-Carr: 7950K74
Panduit: FSF77-12-D
Phoenix Contact: 3200674
Power Phase - Fastenal: 0749610
SPC Technology: SPC4514 84N2048
Thomas Betts: F2030
Tyco AMP: 1-966 067-1
WAGO: 216-263
Weidmuller: 9019110000
ZF: V3AE0047
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 18 AWG |
| Color: | Red |
| Material: | Tin Plated Copper |
| Max Electrical Rating: | 105°C - 600 Volts |
| Max Electrical Current: | 18A |
| L1: | 18mm (0.71") |
| L2: | 12.0mm (0.47") |
| D: | 1.7mm (0.06") |
| D1: | 1.4mm (0.05") |
| D2: | 2.8mm (0.11") |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:ABB: XUSD01855
Altech Corp: 2840.0 FID1812R
American Electrical: 11121010 11123010
Eclipse: 701-117
Elecdirect: FER-18-12D
Greenlee: 471/12
McMaster-Carr: 7950K74
Panduit: FSF77-12-D
Phoenix Contact: 3200674
Power Phase - Fastenal: 0749610
SPC Technology: SPC4514 84N2048
Thomas Betts: F2030
Tyco AMP: 1-966 067-1
WAGO: 216-263
Weidmuller: 9019110000
ZF: V3AE0047
Documents
Click to view product spec sheet:
