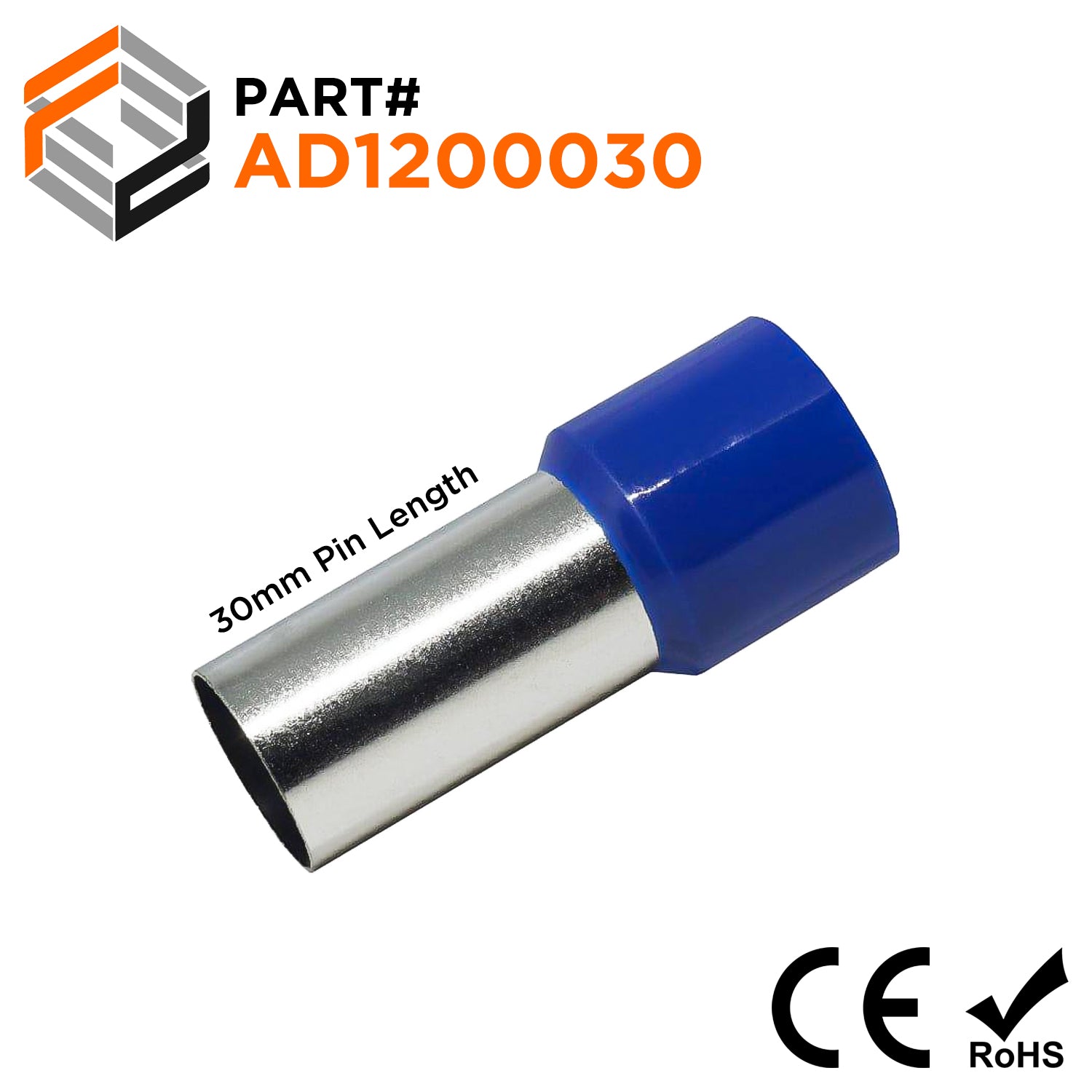

4/0 AWG (30mm Pin) Insulated Ferrules - Blue

Precio original $0.00 - Precio original $20.93
Precio original
$20.93
$0.00 - $20.93
Precio actual $20.93
SKU AD1200030
Disponibilidad:
en stock, listo para ser enviado
Disponibilidad:
Agotado
Pack Quantity: 25 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 4/0 AWG
Color: Blue
L1: 51.0mm (2.01")
L2: 30.0mm (1.18")
D: 17.7mm (0.69")
D1: 16.7mm (0.65")
D2: 20.3mm (0.79")
Material: Tin-Plated Copper
Max Electrical Rating: 105°C (221°F) - 600 Volts
Max Electrical Current: 360A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:





Cross References

Cross Reference Parts:
GE Renewable Energy: 104W4400P027

Weidmuler: 9028220000
ZF: V3AE2896

Documents

Click to view product spec sheet:

Videos

Learn how to crimp a wire ferrule!
