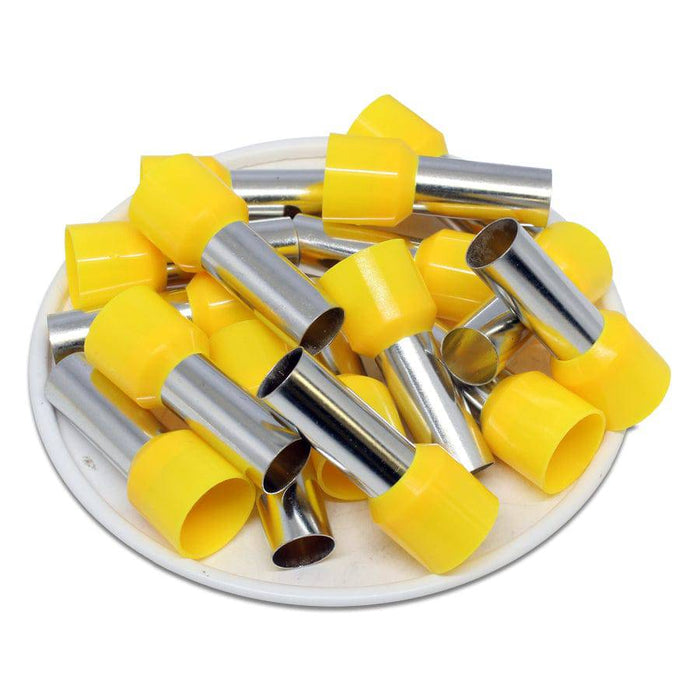

AD250018 - 4 AWG (18mm Pin) Insulated Ferrules - Yellow

Precio original $0.00 - Precio original $12.12
Precio original
$12.12
$0.00 - $12.12
Precio actual $12.12
SKU AD250018
Disponibilidad:
en stock, listo para ser enviado
Disponibilidad:
Agotado
Pack Quantity: 100 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 4 AWG
Color: Yellow
Material: Tin Plated Copper
Max Electrical Rating: 105°C - 600 Volts
Max Electrical Current: 125A
L1: 30.0mm (1.18")
L2: 18.0mm (0.709")
D: 7.7mm (0.303")
D1: 7.3mm (0.287")
D2: 11.2mm (0.44")
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
ABB: 30446917
Altech Corp: 2857.0 FID0418
American Electrical: 11181250
Greenlee: 478/18
Panduit: FSD85-18-L
Phoenix Contact: 3201505
Thomas Betts: F2048
Tyco AMP: 2-966 067-9
Wieland: 06.600.3527.0
ZF: V3AE0065
