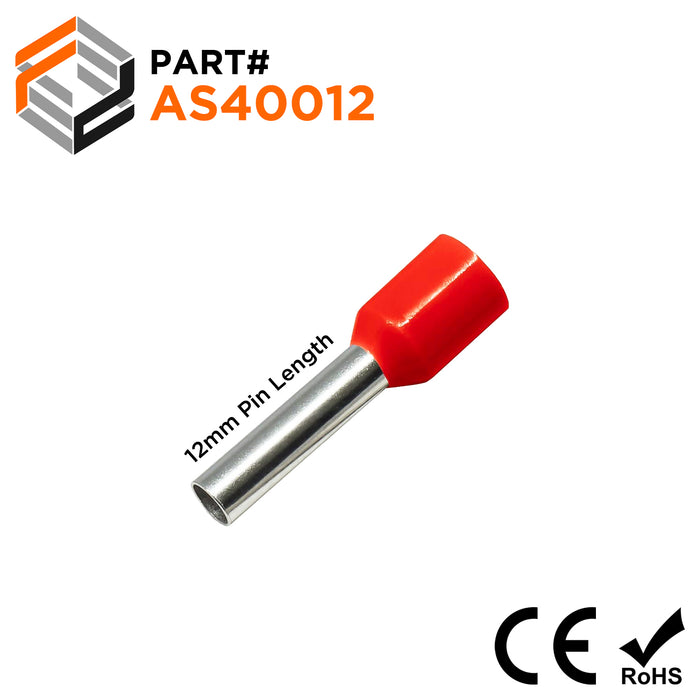

AS40012RD - 12 AWG (12mm Pin) Insulated Ferrules - Red - Special Color

Precio original $0.00 - Precio original $0.00
Precio original $0.00
$21.02 - $21.02
Precio actual $21.02
en stock, listo para ser enviado
Pack Quantity: 500 Pieces

This product has been replaced by F40012R - Click to Purchase

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 12 AWG
Color: Red
L1: 19.6mm (.77")
L2: 12mm (.47")
D: 3.3mm (.13")
D1: 2.8mm (.11")
D2: 4.8mm (.19")
Material: Tin-Plated Copper
Max Electrical Rating: 105°C (221°F) - 600 Volts
Max Electrical Current: 35A
UL Approved: No
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:


Cross References

Cross Reference Parts:


Click to view product spec sheet:
