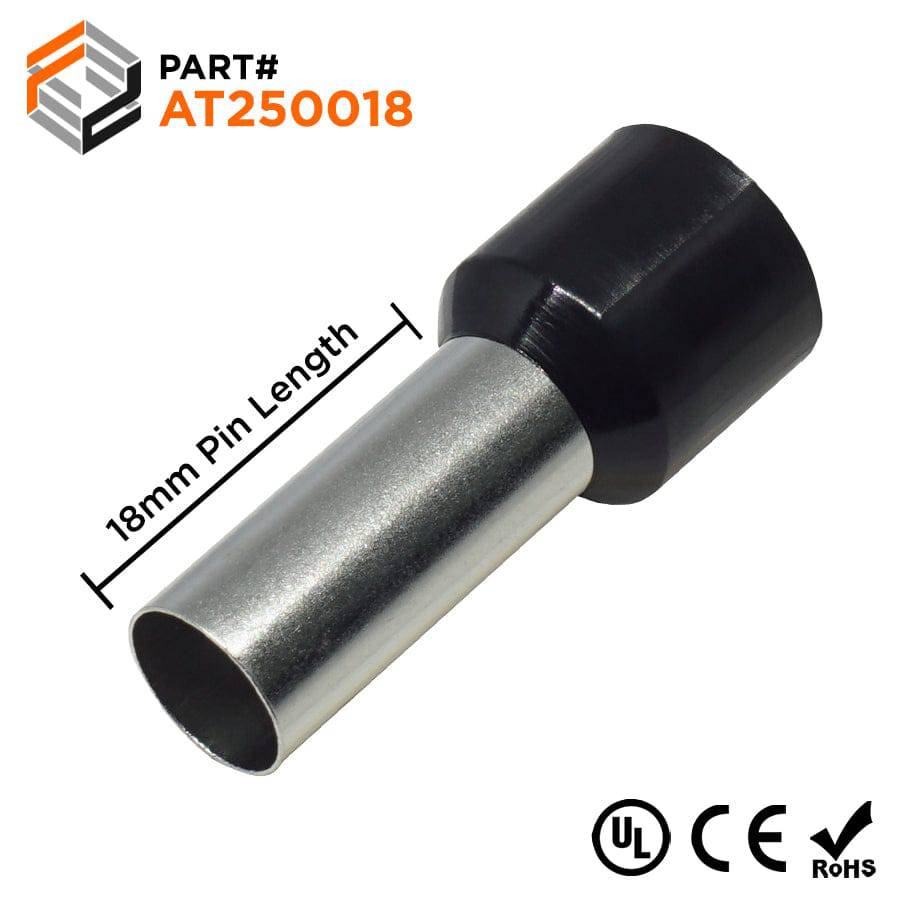

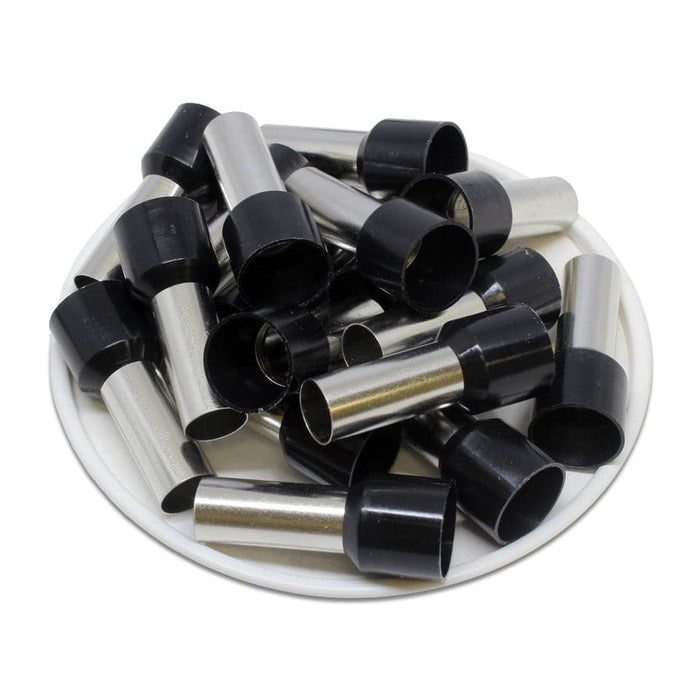

AT250018 - 4 AWG (18mm Pin) Insulated Ferrules - Black

$12.11
SKU AT250018
Piece Quantity
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 4AWG
Color: Black
L1: 30.0mm (1.18")
L2: 18.0mm (.709")
D: 7.7mm (.303")
D1: 7.3mm (.287")
D2: 11.2mm (.441")
Material: Tin Plated Copper
Max Electrical Rating: 105°C - 600 Volts
Max Electrical Current: 125A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
ABB: XUS0018995
American Electrical: 11183250
Greenlee: 178/18
LeGrand: 376 71
Panduit: FSF85-18-L
ZF: V3AE0556
