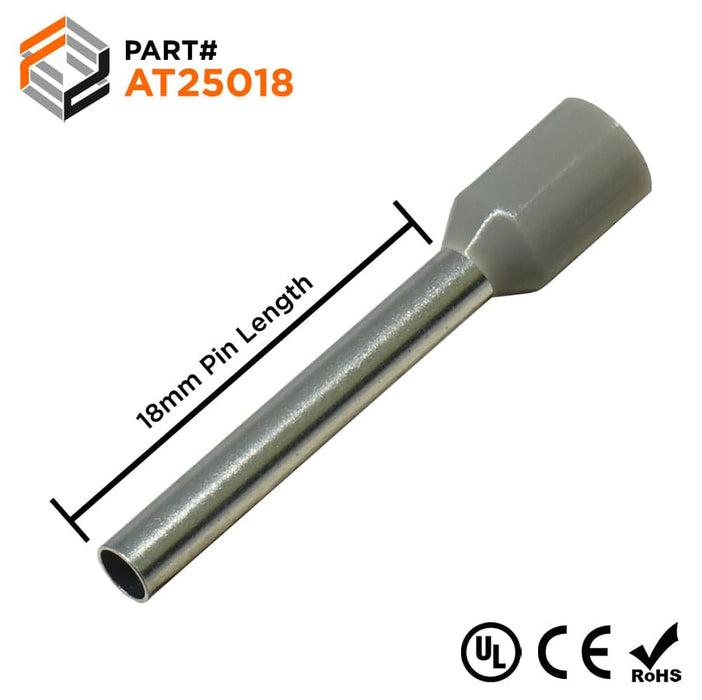

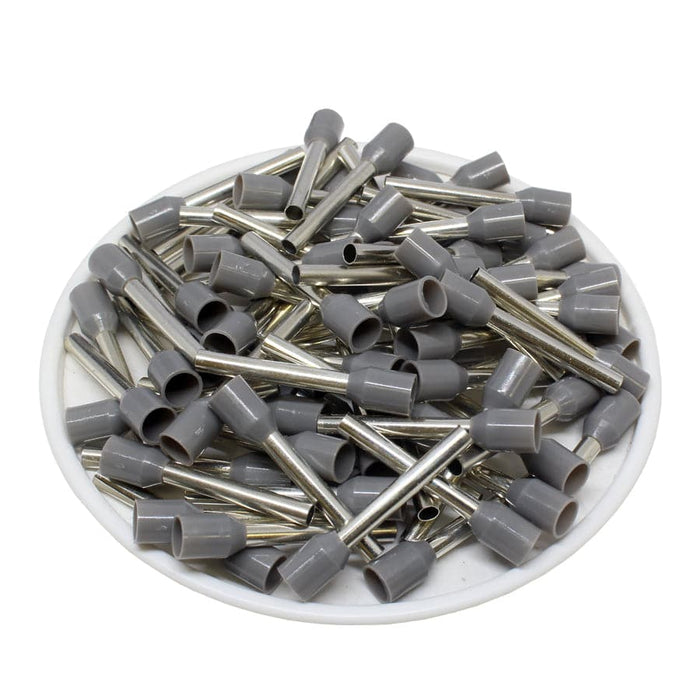

AT25018 - 14AWG (18mm Pin) Insulated Ferrules - Gray
Precio original
$13.74
-
Precio original
$13.74
Precio original
$13.74
$13.74
-
$13.74
Precio actual
$13.74
SKU AT25018
Disponibilidad:
en stock, listo para ser enviado
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Product Drawing:
ABB: XUS001873
American Electrical: 11183025
Crimp Supply: 13A11012
Greenlee: 173/18
Panduit: FSF80-18-D
Phoenix Contact: 3200072
Tyco AMP: 2-966 292-3
WAGO: 216-286
Weidmuller: 9021090000
ZF: V3AE0550
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 14 AWG |
| Color: | Gray |
| Material: | Tin Plated Copper |
| Max Electrical Rating: | 105°C - 600 Volts |
| Max Electrical Current: | 30A |
| L1: | 24mm (0.94") |
| L2: | 18.0mm (0.71") |
| D: | 2.5mm (0.09") |
| D1: | 2.2mm (0.08") |
| D2: | 4.2mm (0.16") |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:ABB: XUS001873
American Electrical: 11183025
Crimp Supply: 13A11012
Greenlee: 173/18
Panduit: FSF80-18-D
Phoenix Contact: 3200072
Tyco AMP: 2-966 292-3
WAGO: 216-286
Weidmuller: 9021090000
ZF: V3AE0550
Documents
Click to view product spec sheet:
