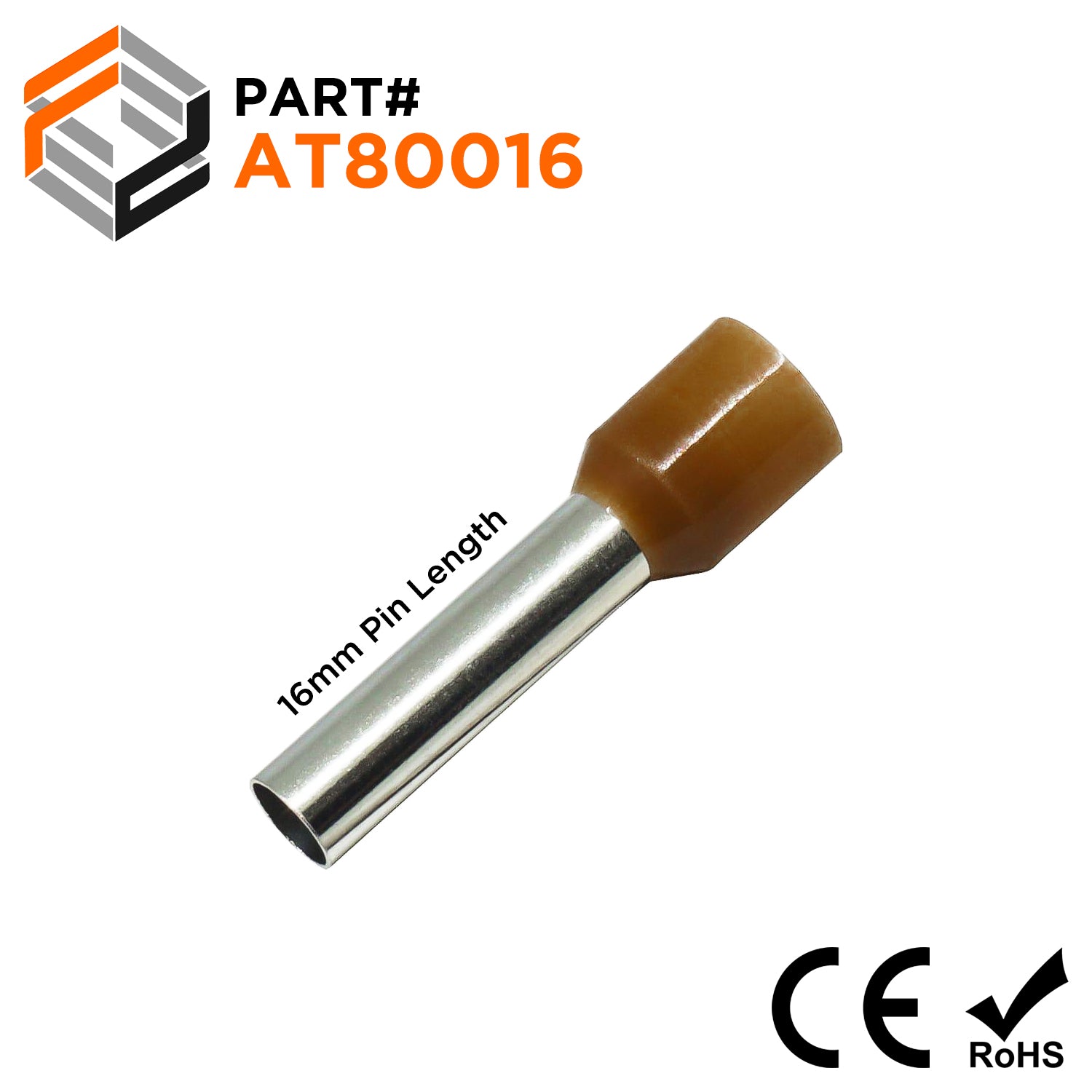

AT80016 - True 8 AWG (16mm Pin) Insulated Ferrules - Brown

Precio original $8.03 - Precio original $8.03
Precio original
$8.03
$8.03 - $8.03
Precio actual $8.03
SKU AT80016
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: True 8 AWG
Color: Brown
Material: Tin-Plated Copper
L1: 27mm (1.06")
L2: 16.0mm (.630")
D: 4.2mm (.165")
D1: 3.7mm (.147")
D2: 5.7mm (.224")
Max Electrical Rating: 105°C (221°F) - 600 Volts
Max Electrical Current: 70A
UL Approved: No
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
