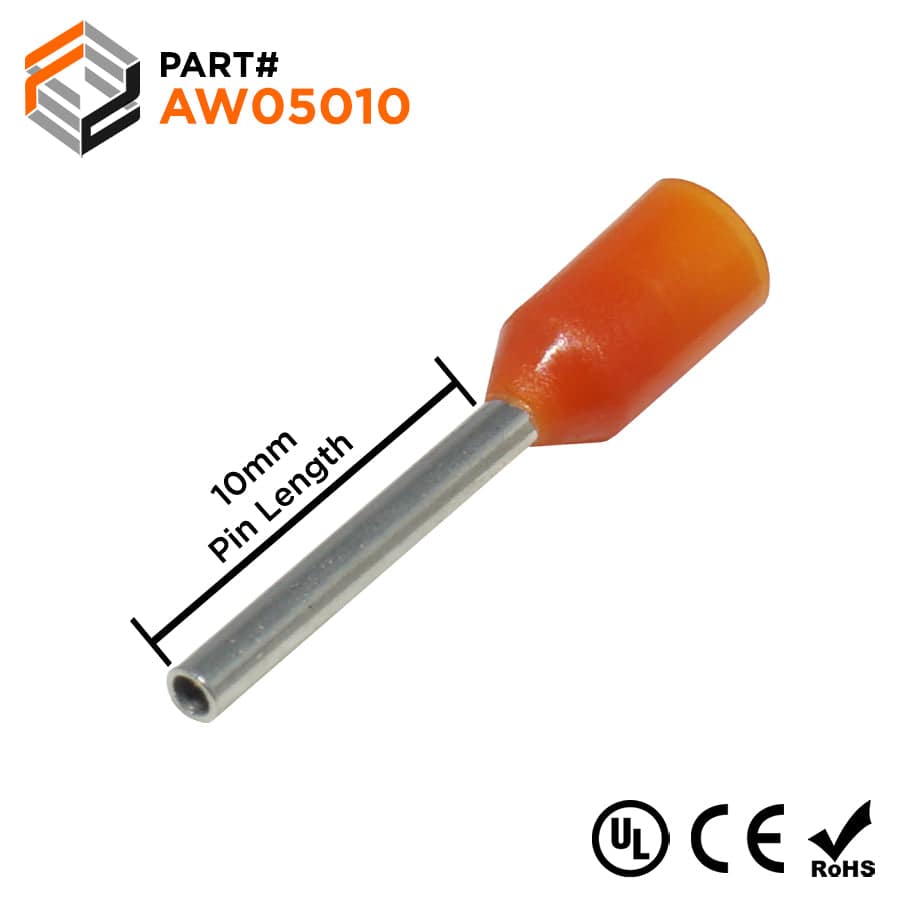

AW05010 - 22 AWG (10mm Pin) Insulated Ferrules - Orange
Precio original
$0.00
-
Precio original
$0.00
Precio original
$0.00
$7.37
$0.00
-
$7.37
Precio actual
$7.37
SKU AW05010
Disponibilidad:
en stock, listo para ser enviado
Disponibilidad:
Agotado
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Altech Corp: FII2010
American Electrical: 11102050
Burndy Hubbell: 10097995 YF2210IW
Eclipse: 701-010
Greenlee: 169/OH
SPC Technology: SPC4475 84N2009
Tyco AMP: 1-966 066-8
Weidmuller: 9025870000
ZF: V3AE0007
Dimensions & Features:
| Wire Size: | 22 AWG |
| Color: | Orange |
| L1: | 16.0mm (0.63") |
| L2: | 10.0mm (0.394") |
| D: | 1.3mm (0.051") |
| D1: | 1.0mm (0.039") |
| D2: | 2.6mm (0.102") |
| UL Approved: | Yes |
| CE Certfied: | Yes |
| RoHS Compliant: | Yes |
| Max Electrical Rating: | 105oC (221oF) - 600 Volts |
| Max Electrical Current: | 12A |
Technical Drawing:
Cross References
ABB: XUSG01835Altech Corp: FII2010
American Electrical: 11102050
Burndy Hubbell: 10097995 YF2210IW
Eclipse: 701-010
Greenlee: 169/OH
SPC Technology: SPC4475 84N2009
Tyco AMP: 1-966 066-8
Weidmuller: 9025870000
ZF: V3AE0007
