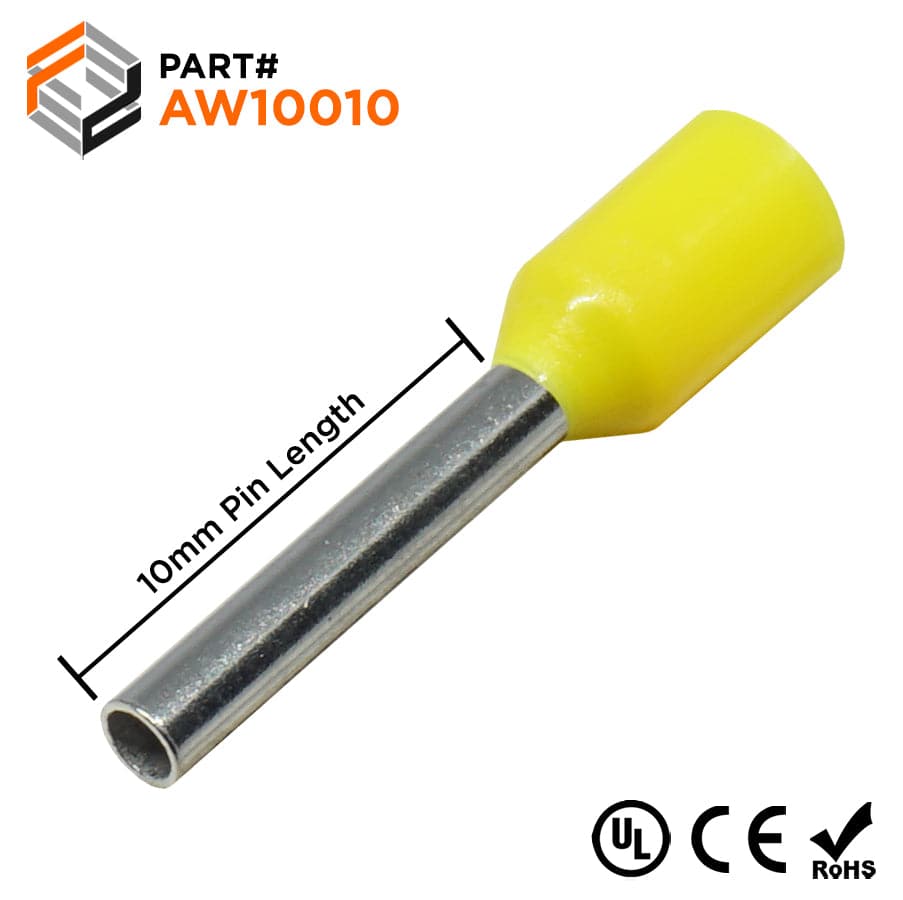

AW10010 - 18AWG (10mm Pin) Insulated Ferrules - Yellow
Precio original
$0.00
-
Precio original
$0.00
Precio original
$0.00
$7.38
$0.00
-
$7.38
Precio actual
$7.38
SKU AW10010
Disponibilidad:
en stock, listo para ser enviado
Disponibilidad:
Agotado
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Technical Drawing:
ABB: XUSG01853
Altech Corp: FII1810Y
American Electrical: 11102010
Eclipse: 701-023
Greenlee: 171/GH
SPC Technology: SPC4482 84N2016
Tyco AMP: 2-966 066-3
Weidmuller: 9025950000
ZF: V30AE000014
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 18 AWG |
| Color: | Yellow |
| L1: | 16.46mm (.648") |
| L2: | 10mm (.394") |
| D: | 1.7mm (.067") |
| D1: | 1.4mm (.055") |
| D2: | 2.8mm (.110") |
| Material: | Tin-Plated Copper |
| Max Electrical Rating: | 105°C (221°F) - 600 Volts |
| Max Electrical Current: | 18A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:ABB: XUSG01853
Altech Corp: FII1810Y
American Electrical: 11102010
Eclipse: 701-023
Greenlee: 171/GH
SPC Technology: SPC4482 84N2016
Tyco AMP: 2-966 066-3
Weidmuller: 9025950000
ZF: V30AE000014
Documents
Click to view product spec sheet:
