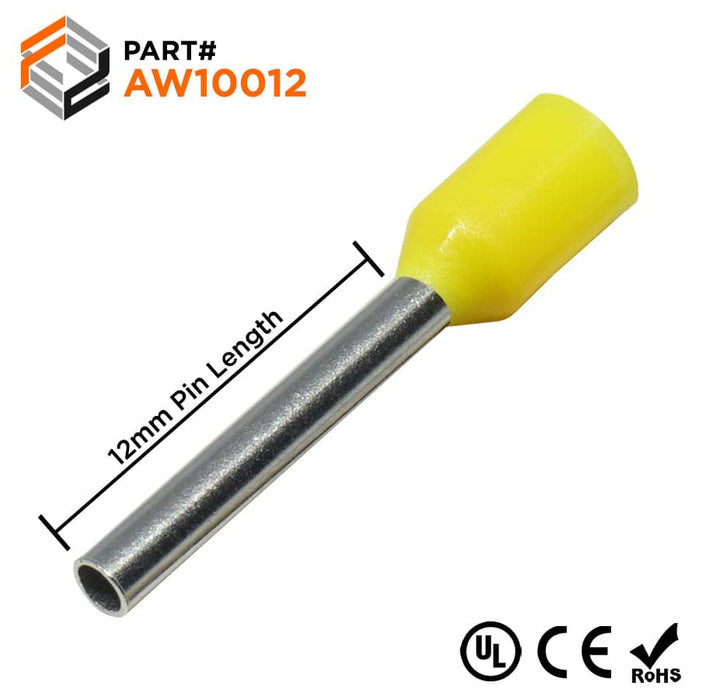

AW10012 - 18AWG (12mm Pin) Insulated Ferrules - Yellow
Precio original
$0.00
-
Precio original
$0.00
Precio original
$0.00
$8.28
$8.28
-
$8.28
Precio actual
$8.28
SKU AW10012
Disponibilidad:
en stock, listo para ser enviado
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Technical Drawing:
ABB: XUSG01856
Altech Corp: FII1812Y
American Electrical: 11122010
Crimp Supply: 13A11007
Eclipse: 701-032
Greenlee: 171/GL
SPC Technology: SPC4483 84N2017
Tyco AMP: 2-966 066-4
Weidmuller: 9028340000
ZF: V3AE0015
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 18 AWG |
| Color: | Yellow |
| L1: | 18mm (.709") |
| L2: | 12mm (.472") |
| D: | 1.7mm (.067") |
| D1: | 1.4mm (.055") |
| D2: | 2.8mm (.110") |
| Material: | Tin-Plated Copper |
| Max Electrical Rating: | 105°C (221°F) - 600 Volts |
| Max Electrical Current: | 18A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:ABB: XUSG01856
Altech Corp: FII1812Y
American Electrical: 11122010
Crimp Supply: 13A11007
Eclipse: 701-032
Greenlee: 171/GL
SPC Technology: SPC4483 84N2017
Tyco AMP: 2-966 066-4
Weidmuller: 9028340000
ZF: V3AE0015
Documents
Click to view product spec sheet:
