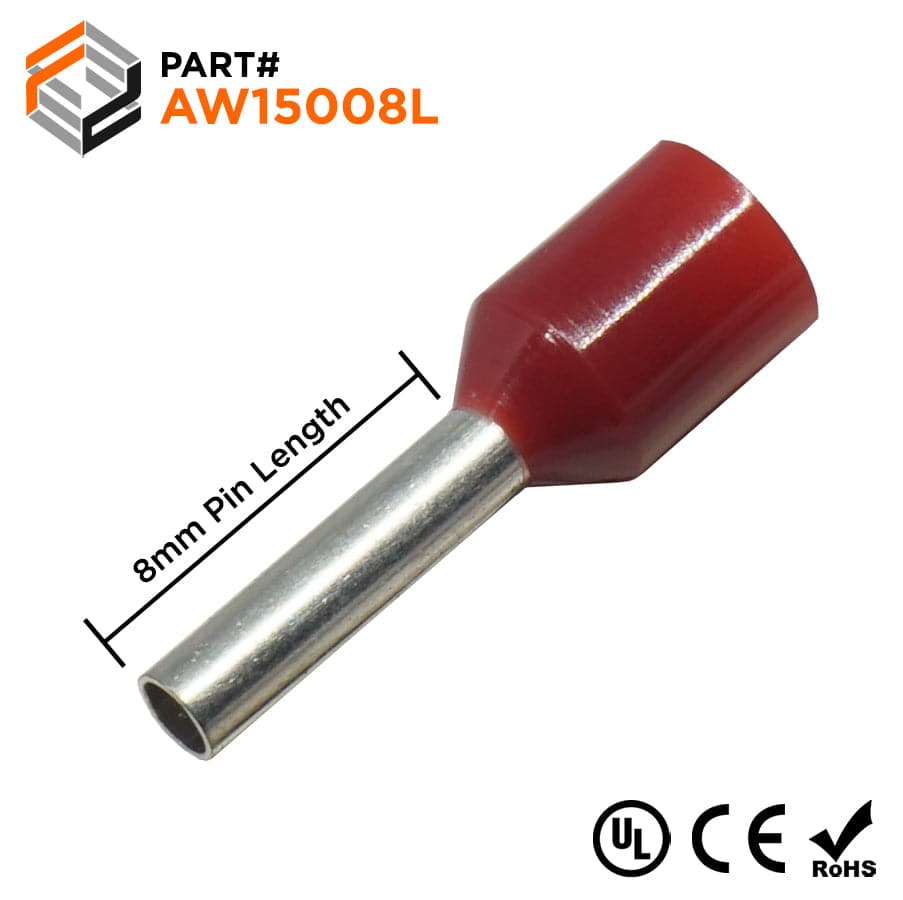

AW15008L - 16AWG (8mm Pin) Insulated Ferrules - Red - Large Cap
Precio original
$0.00
-
Precio original
$0.00
Precio original
$0.00
$9.08
$9.08
-
$9.08
Precio actual
$9.08
SKU AW15008L
Disponibilidad:
en stock, listo para ser enviado
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Product Drawing:
None:
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Wire Size: | 16 AWG |
Color: | Red |
Material: | Tin Plated Copper |
Max Electrical Rating: | 105°C - 600 Volts |
Max Electrical Current: | 18A |
L1: | 14.5mm (0.57") |
L2: | 8.0mm (0.31") |
D: | 2.0mm (0.08") |
D1: | 1.7mm (0.06") |
D2: | 3.8mm (0.15") |
UL Approved: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
