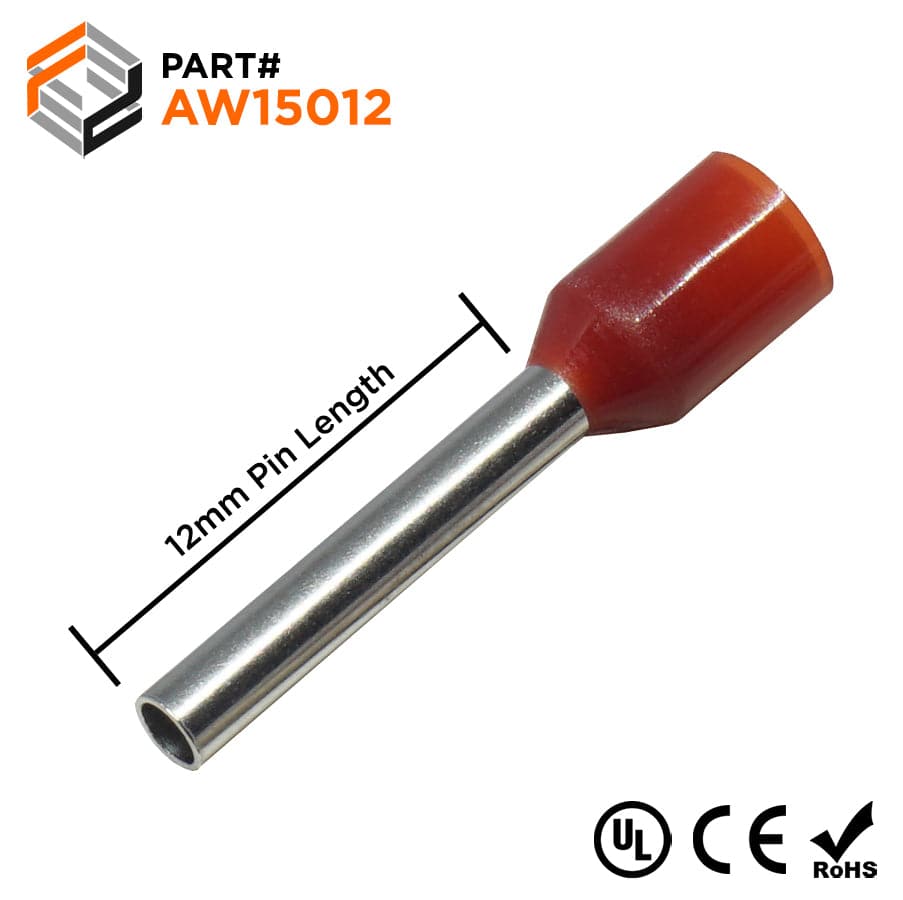

AW15012 - 16AWG (12mm Pin) Insulated Ferrules - Red

Precio original $0.00 - Precio original $0.00
Precio original $0.00
$8.82
$0.00 - $8.82
Precio actual $8.82
SKU AW15012
Disponibilidad:
en stock, listo para ser enviado
Disponibilidad:
Agotado

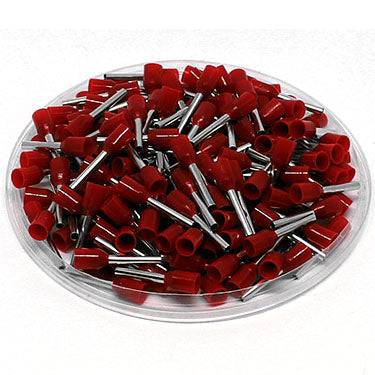

Pack Quantity: 500 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 16 AWG
Color: Red
Material: Tin Plated Copper
Max Electrical Rating: 105°C - 600 Volts
Max Electrical Current: 18A
L1: 18mm (0.71")
L2: 12.0mm (0.47")
D: 2.0mm (0.08")
D1: 1.7mm (0.06")
D2: 3.5mm (0.14")
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

ABB: XUSG01863
Altech Corp: FII1612
American Electrical: 11122015
Burndy: YF1612IW
GE Renewable Energy: 104W4400P021

SPC Technology: SPC4487 84N2021
ZF: V3AE2114 - V30AE002114
