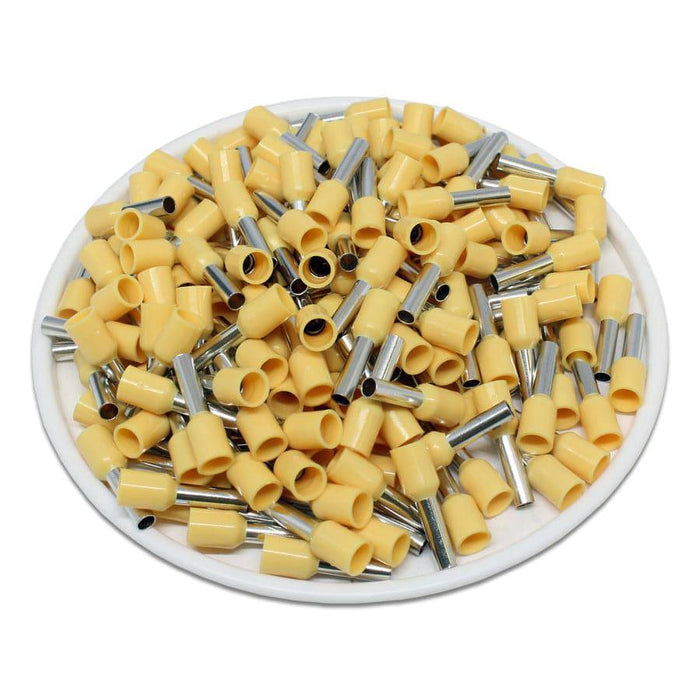

AW20008 - True 14 AWG (8mm Pin) Insulated Ferrules - Yellow
Precio original
$0.00
-
Precio original
$0.00
Precio original
$0.00
$9.63
$9.63
-
$9.63
Precio actual
$9.63
SKU AW20008
Disponibilidad:
en stock, listo para ser enviado
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Product Drawing:
ABB: XUSG01867
Altech Corp: FII1408Y
American Electrical: 1183208 1181208
Panduit: FSF79-8-D
WAGO: 216-205
ZF: V3AE4700
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | True 14 AWG |
| Color: | Yellow |
| Material: | Tin Plated Copper |
| Max Electrical Rating: | 105°C - 600 Volts |
| Max Electrical Current: | 30A |
| L1: | 14.5mm (0.57") |
| L2: | 8.0mm (0.31") |
| D: | 2.4mm (0.09") |
| D1: | 2.05mm (0.08") |
| D2: | 3.4mm (0.13") |
| UL Approved: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:ABB: XUSG01867
Altech Corp: FII1408Y
American Electrical: 1183208 1181208
Panduit: FSF79-8-D
WAGO: 216-205
ZF: V3AE4700
Documents
Click to view product spec sheet:
