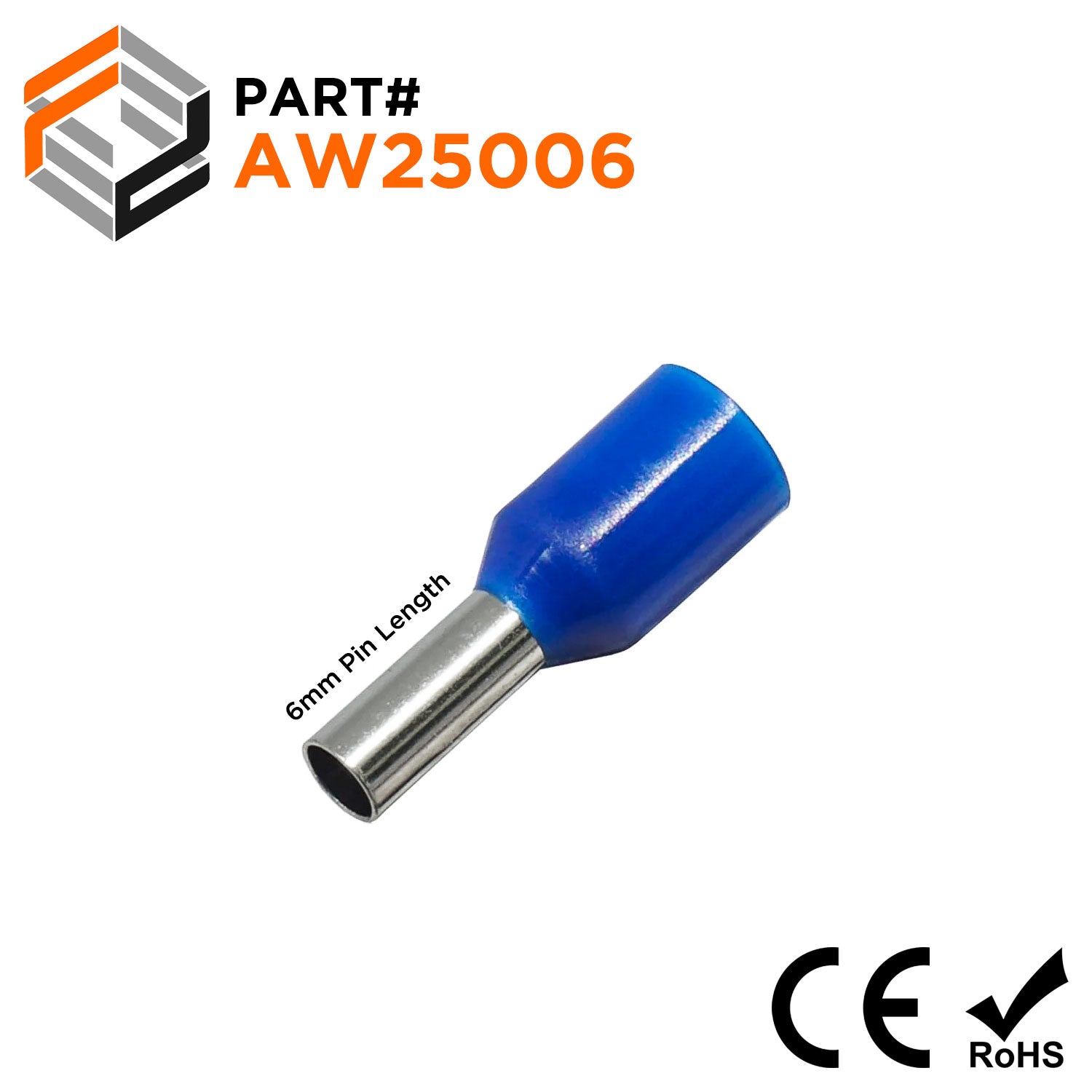

AW25006 - 14AWG (6mm Pin) Insulated Ferrules - Blue

Precio original $0.00 - Precio original $0.00
Precio original $0.00
$8.36
$8.36 - $8.36
Precio actual $8.36
SKU AW25006
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 500 Pieces

INSULATED WIRE FERRULES

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 14 AWG
Color: Blue
Material: Tin Plated Copper
Max Electrical Rating: 105°C - 600 Volts
Max Electrical Current: 30A
L1: 13mm (.51")
L2: 6mm (.236")
D: 2.5mm (.098")
D1: 2.2mm (0.08")
D2: 4.2mm (0.15")
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None
