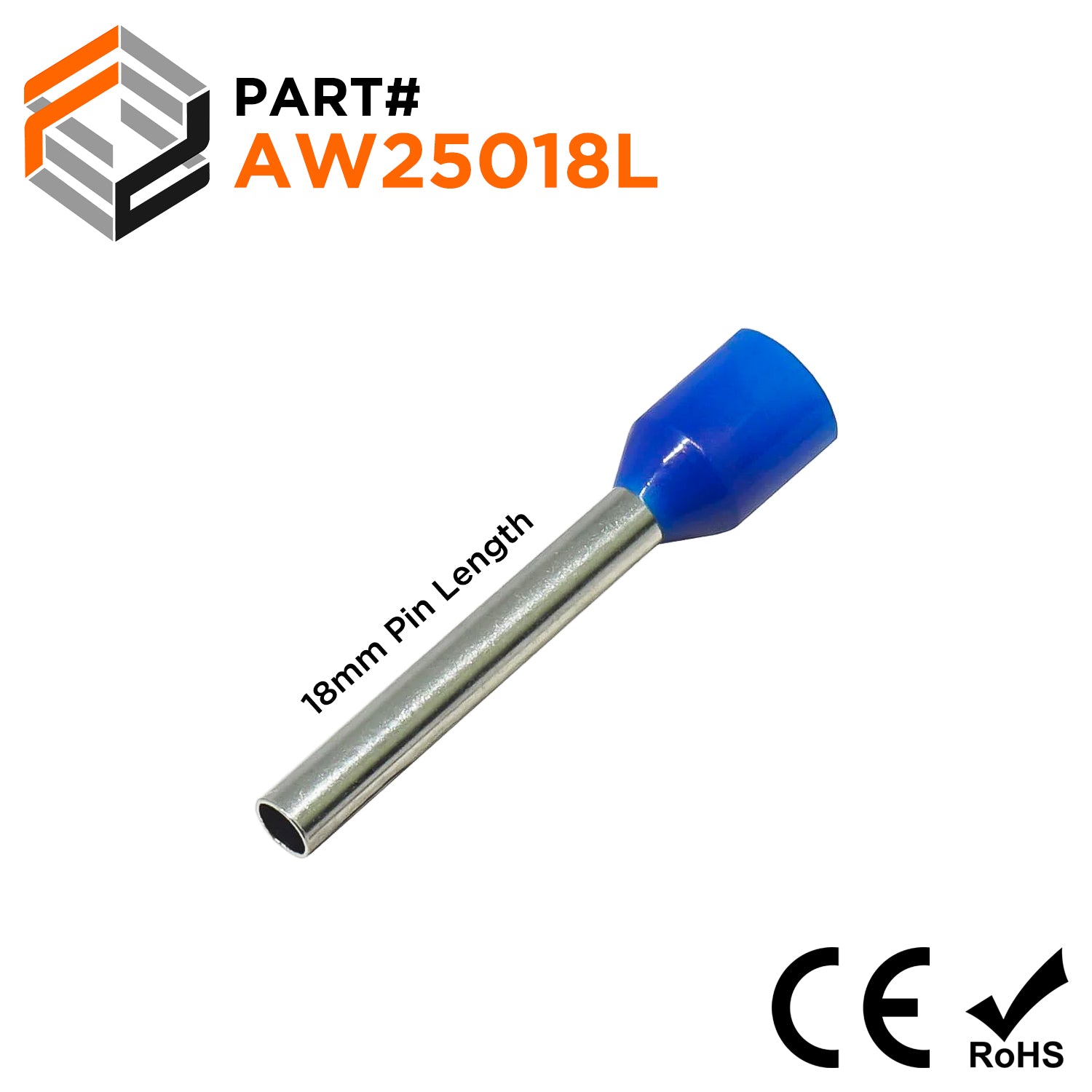

AW25018L - 14AWG (18mm Pin) Insulated Ferrules - Blue - Large Cap

Precio original $0.00 - Precio original $0.00
Precio original $0.00
$16.96
$16.96 - $16.96
Precio actual $16.96
SKU AW25018L
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 500 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 14 AWG
Color: Blue
Material: Tin Plated Copper
Max Electrical Rating: 105°C - 600 Volts
Max Electrical Current: 30A
L1: 24.0mm (0.94")
L2: 18.0mm (0.71")
D: 2.5mm (0.09")
D1: 2.2mm (0.08")
D2: 4.6mm (0.18")
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:
