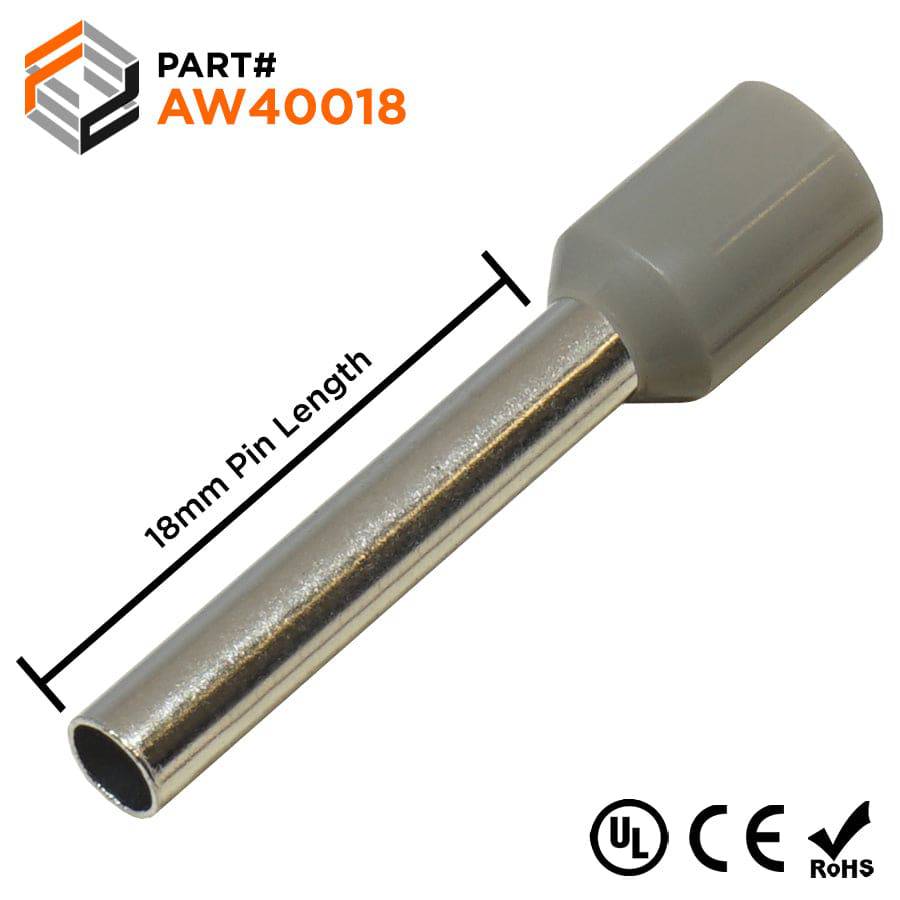

AW40018 - 12 AWG (18mm Pin) Insulated Ferrules - Gray

Precio original $0.00 - Precio original $0.00
Precio original $0.00
$0.00 - $19.72
Precio actual $19.72
SKU AW40018
en stock, listo para ser enviado
Pack Quantity: 500 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 12 AWG
Color: Gray
Material: Tin Plated Copper
Max Electrical Rating: 105°C - 600 Volts
Max Electrical Current: 35A
L1: 26mm (1.02")
L2: 18.0mm (0.71")
D: 3.3mm (0.13")
D1: 2.8mm (0.11")
D2: 4.8mm (0.19")
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

ABB: 30446200
Altech Corp: 2850.0 2209.0 FID1218
American Electrical: 11182040
Ecplipse: 701-037
Greenlee: 174/GRL
McMaster-Carr: 7950K59 7950K33
Panduit: FSD81-18-C
Phoenix Contact: 3200593
Power Phase - Fastenal: 0749621

SPC Technology: SPC4494 84N2028
Thomas Betts: F2040
Tyco AMP: 3-966 066-2
WAGO: 216-287
Weidmuller: 9019210000
Wieland: 06.600.2827.0
ZF: V3AE0057
