ENAFE1810BS - Brass Plated Copper Splice Cap Connectors - 18-10AWG - Ferrules Direct

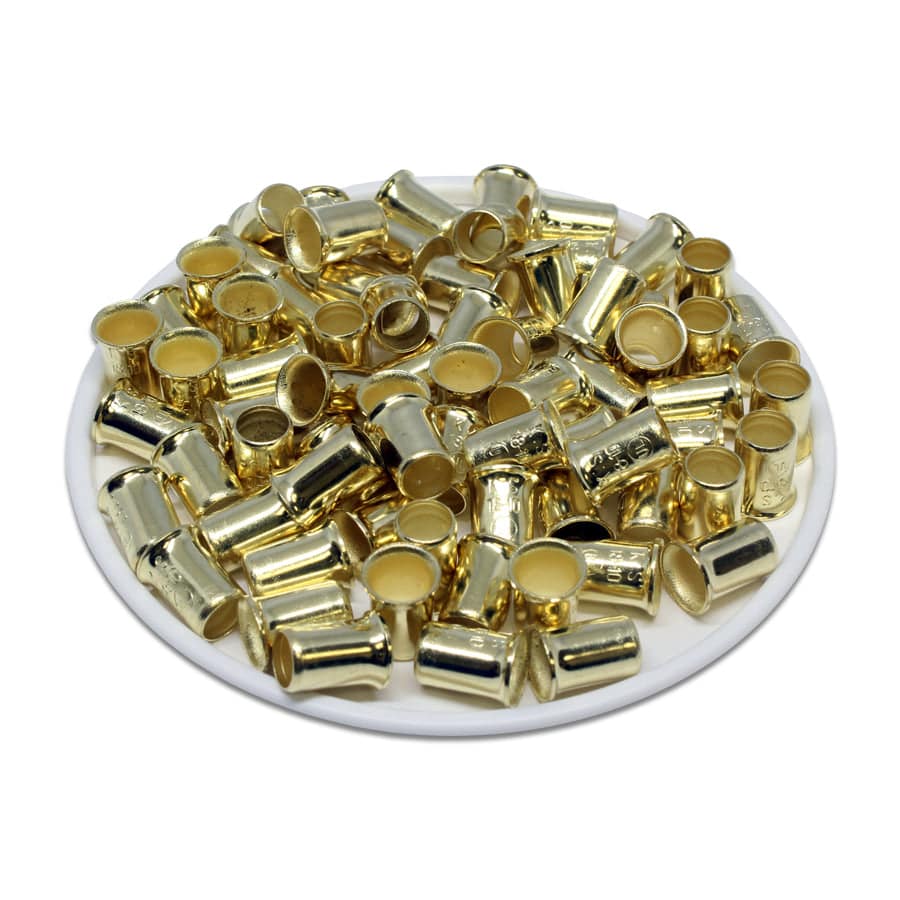

ENAFE1810BS - 10 to 18 AWG Brass Plated Steel Splice Cap Connectors, 100 Pieces

Name: ENAFE1810BS - 10 to 18 AWG Brass Plated Steel Splice Cap Connectors, 100 Pieces
Brand: Ferrules Direct
SKU: ENAFE1810BS
Price: 5.98 USD
Availability: InStock

$5.98 - $5.98

$5.98

$5.98 - $5.98

$5.98

SKU ENAFE1810BS

Pack Quantity: 100 Pieces

Disponibilidad:

en stock, listo para ser enviado

Cantidad

true

STEEL SPLICE CAP CONNECTORS

A steel splice cap is a type of electrical connector used to join two or more electrical wires together. It’s particularly common in residential and commercial wiring for grounding or connecting conductors. The features of brass plated steel splice caps include superior durability compared to pure copper, enhanced corrosion resistance, and a solid and reliable connection when properly crimped.

COMPARE TO THESE PARTS:

/* if no javascript: get back ATC button */ body:not(.spo-loaded) [data-shopify="payment-button"], body:not(.spo-loaded).template-product form[action="/cart/add"] [type=submit], body:not(.spo-loaded).template-collection form[action="/cart/add"] [type=submit], body:not(.spo-loaded).template-index form[action="/cart/add"] [type=submit], body:not(.spo-loaded) form[action="/cart/add"] [type=submit] {opacity: 1; pointer-events: all} body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) button, body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) input[type="submit"], body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) input[type="button"], body:not(.spo-loaded) [name="checkout"], body:not(.spo-loaded) [name="goto_pp"], body:not(.spo-loaded) [name="goto_amazon_payments"] {opacity: 1; pointer-events: all}

PRODUCT INFORMATION
Wire Size	18-10 AWG
Datasheet (PDF)	Descargar archivo
Overall Length (L)	9.5mm (0.37")
Flanged Outer Diameter (D)	7.5mm (0.295")
Outer Diameter (W)	6.1mm (0.24")
Inner Diameter (D1)	5.2mm (0.20")
Material	Brass Plated Steel
Maximum Electrical Rating	105°C - 600 Volts
Maximum Electrical Current	50AMP
UL Recognized	Yes
CE Certified	Yes
RoHS Compliant	Yes
REACH Compliant	Yes

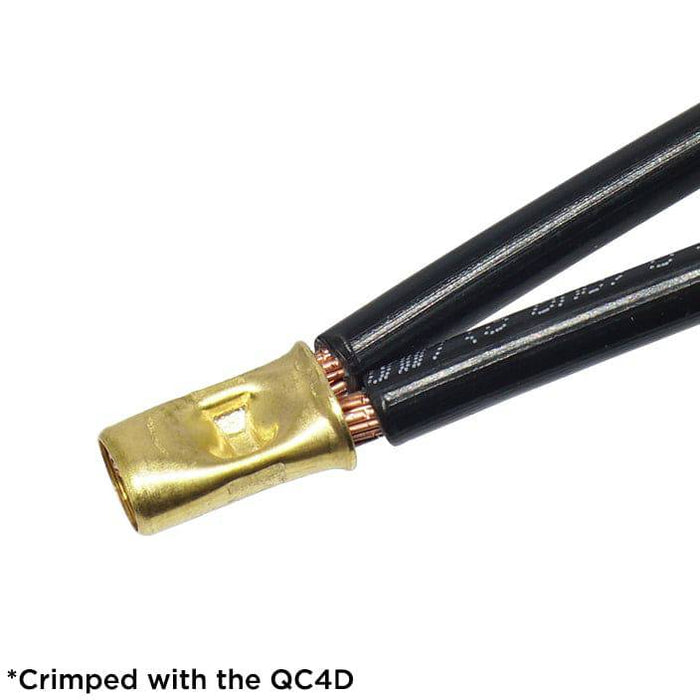

Recommended Hand Tools	FDT10021 \| FDT10022 \| QC4D
Recommended Crimping Machines	FEK50

PRODUCT INFORMATION
Resaltar diferencias	ENAFE1810BS - 10 to 18 AWG Brass Plated Steel Splice Cap Connectors, 100 Pieces$5.98
Wire Size	18-10 AWG
Datasheet (PDF)	Descargar archivo
Overall Length (L)	9.5mm (0.37")
Flanged Outer Diameter (D)	7.5mm (0.295")
Outer Diameter (W)	6.1mm (0.24")
Inner Diameter (D1)	5.2mm (0.20")
Material	Brass Plated Steel
Maximum Electrical Rating	105°C - 600 Volts
Maximum Electrical Current	50AMP
UL Recognized	Yes
CE Certified	Yes
RoHS Compliant	Yes
REACH Compliant	Yes
Recommended Hand Tools	FDT10021 \| FDT10022 \| QC4D
Recommended Crimping Machines	FEK50
