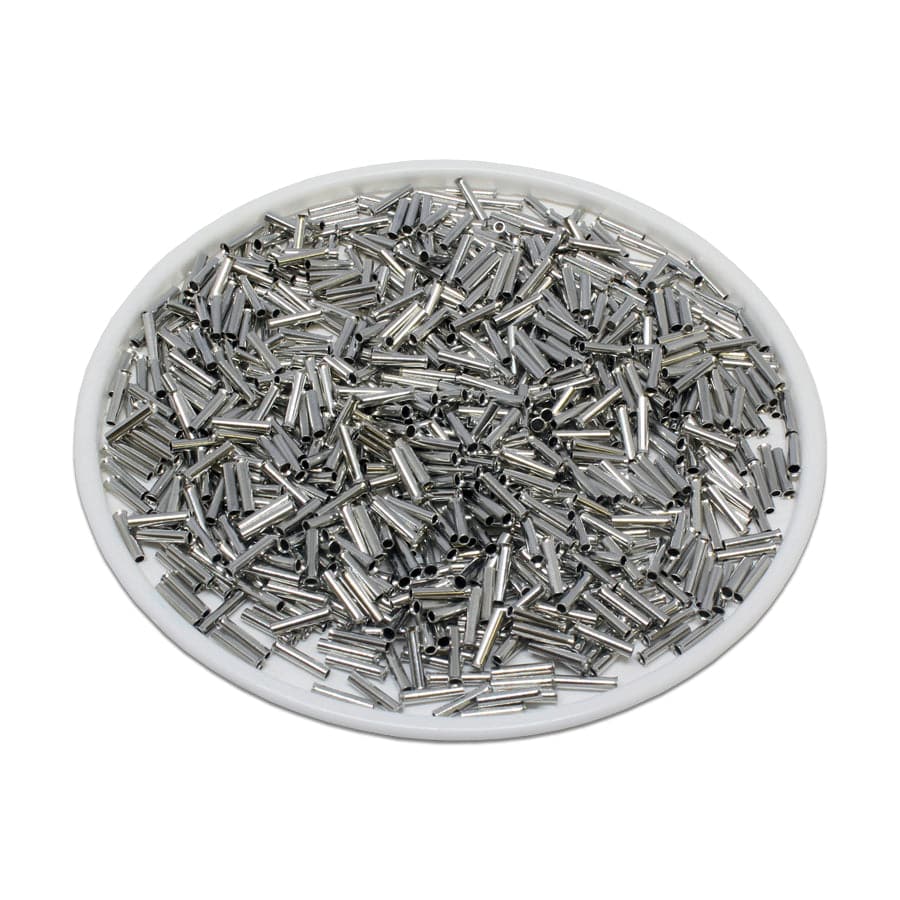

N05006 - 22 AWG (6mm Pin) Non Insulated Ferrules

Precio original $10.10 - Precio original $10.10
Precio original
$10.10 - $10.10
Precio actual $10.10
SKU N05006
en stock, listo para ser enviado
Piece Quantity: 1000 Pieces

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Range: 22 AWG (0.50mm2)
Material: Tin-Plated Copper
L1: 6mm (0.23")
D: 1.2mm (0.05")
D1: 1mm (0.04")
D2: 1.7mm (0.06")
Max Electrical Rating: Up to 2000V
Max Electrical Current: 12A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes


Technical Drawing:

Cross References

Cross Reference Parts:
ABB: 30457105
Altech Corp: 2216.0
American Electrical: 12610050
Burndy: 10097759 YF2206UI
Hubbell: 10097759 YF2206UI
Cembre: KE506ST
Eclipse: 701-047
Greenlee: 71S/6VZ
Panduit: F75-6-M
Phoenix Contact: 3200218
SPC Technology: SPC4535 84N2069
Thomas Betts: F9001
WAGO: 216-121
Weidmuller: 282600000
Weland: 06.600.4027.0
ZF: V3AE9048
