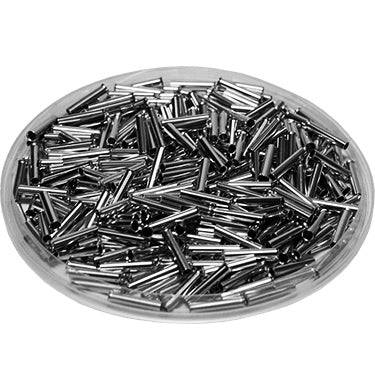

N05008 - 22 AWG (8mm Pin) Non Insulated Ferrules

Precio original $10.26 - Precio original $10.26
Precio original
$10.26 - $10.26
Precio actual $10.26
SKU N05008
en stock, listo para ser enviado
Piece Quantity: 1000 Pieces

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Range: 22 AWG (0.50mm2)
Material: Tin-Plated Copper
L1: 8mm (0.31")
D: 1.2mm (0.05")
D1: 1mm (0.04")
D2: 1.7mm (0.06")
Max Electrical Rating: Up to 2000V
Max Electrical Current: 12A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes


Technical Drawing:

Cross References

Cross Reference Parts:
ABB: 30457105
American Electrical: 2216.0
Burndy: 10097760 YF2208UI
Hubbell: 10097760 YF2208UI
Cembre: KE506ST
Greenlee: 71S/6VZ
McMaster-Carr: 9681K52
Panduit: F75-8-M
Phoenix Contact: 3202481
SPC Technology: SPC4536 84N2070
WAGO: 216-101
ZF: V3AE9048
