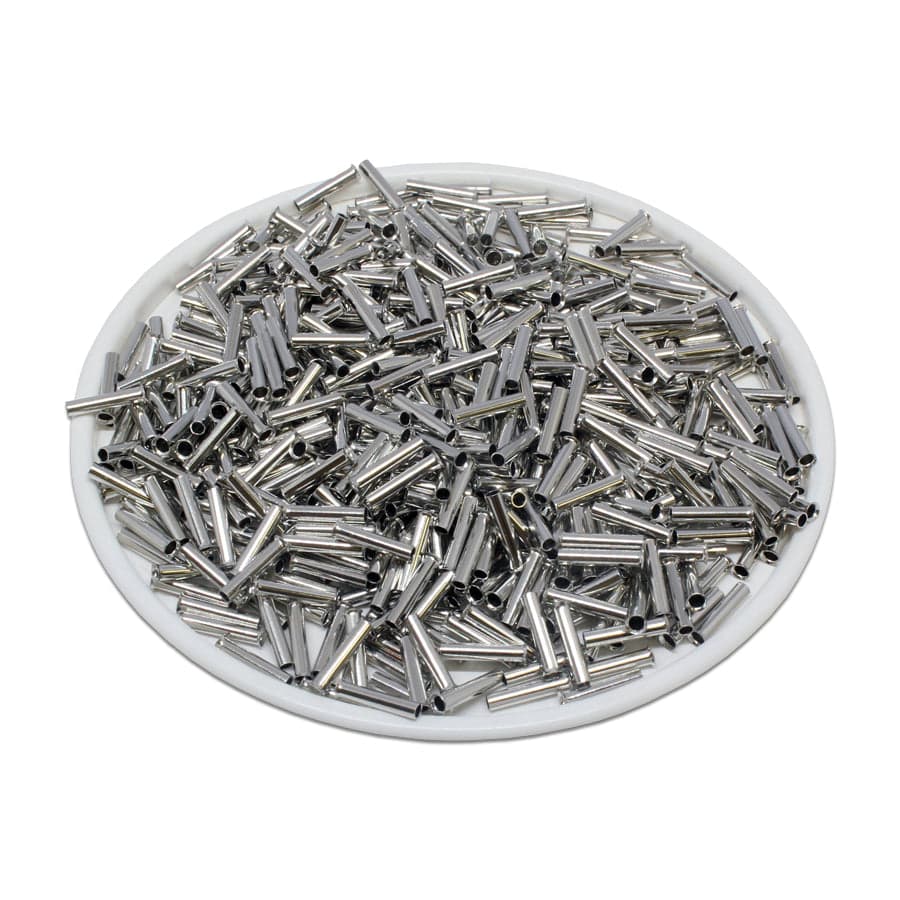

N07508 - 20 AWG (8mm Pin) Non Insulated Ferrules
Precio original
$11.18
-
Precio original
$11.18
Precio original
$11.18
$11.18
-
$11.18
Precio actual
$11.18
SKU N07508
Disponibilidad:
en stock, listo para ser enviado
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Range: | 20 AWG (0.75mm2) |
| Material: | Tin-Plated Copper |
| L1: | 8mm (0.31") |
| D: | 1.5mm (0.06") |
| D1: | 1.2mm (0.05") |
| D2: | 1.9mm (0.07") |
| Max Electrical Rating: | Up to 2000V |
| Max Electrical Current: | 17A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:ABB: XUSG01957
American Electrical: 12810075
Cembre: KE7508ST
Greenlee: 71/8VZ
Panduit: F76-8-M
Phoenix Contact: 3202504
SPC Technology: SPC4538 84N2072
WAGO: 216-102
ZF: V3AE9427
Documents
Click to view product spec sheet:
