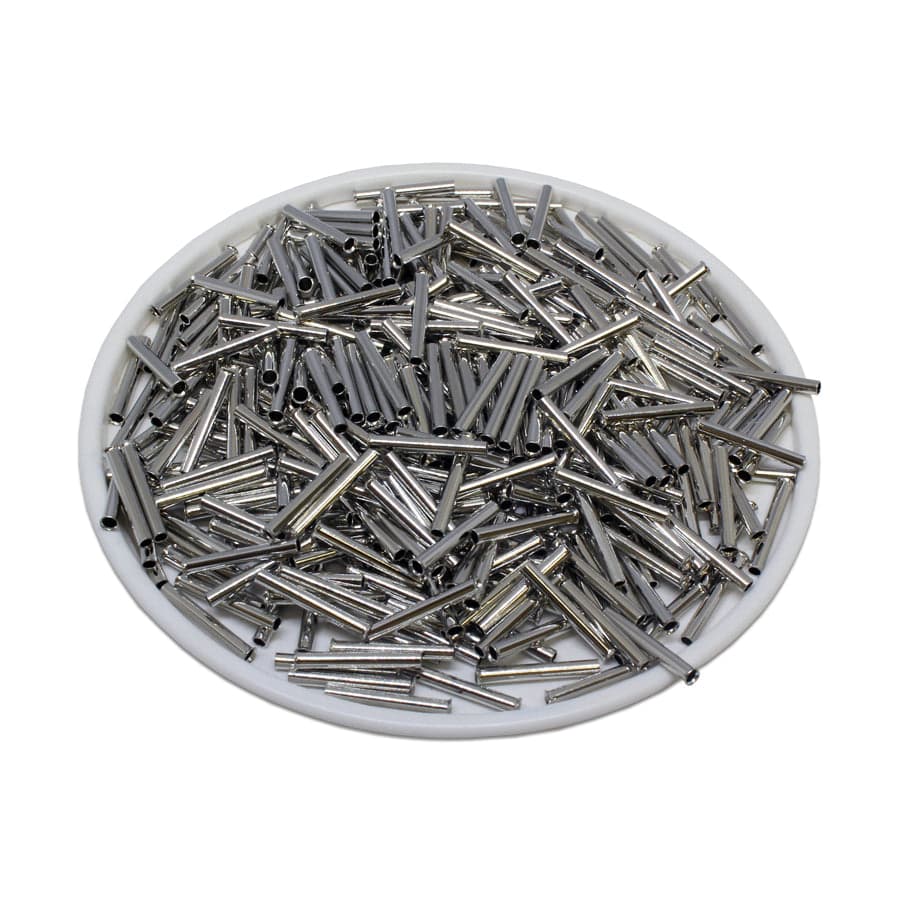

N07512 - 20 AWG (12mm Pin) Non Insulated Ferrules

Precio original $0.00 - Precio original $13.04
Precio original
$13.04
$0.00 - $13.04
Precio actual $13.04
SKU N07512
Disponibilidad:
en stock, listo para ser enviado
Disponibilidad:
Agotado
Piece Quantity: 1000 Pieces

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.


Dimensions & Features:

Wire Range: 20AWG
Material: Tin-Plated Copper
L1: 12mm (0.47")
D: 1.5mm (0.06")
D1: 1.2mm (0.05")
D2 2.3mm (0.07")
Max Electrical Rating: Up to 2000V
Max Electrical Current: 17AMP
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes



Technical Drawing:


Cross References

Cross References:

ABB: XUSG01959
American Electrical: 121210075
Burndy:10097765 YF2012UI
Hubbell: 10097765 YF2012UI
Elecdirect: FERN-20-10M
Panduit: F76-12-M
ZF: V3AE9323
