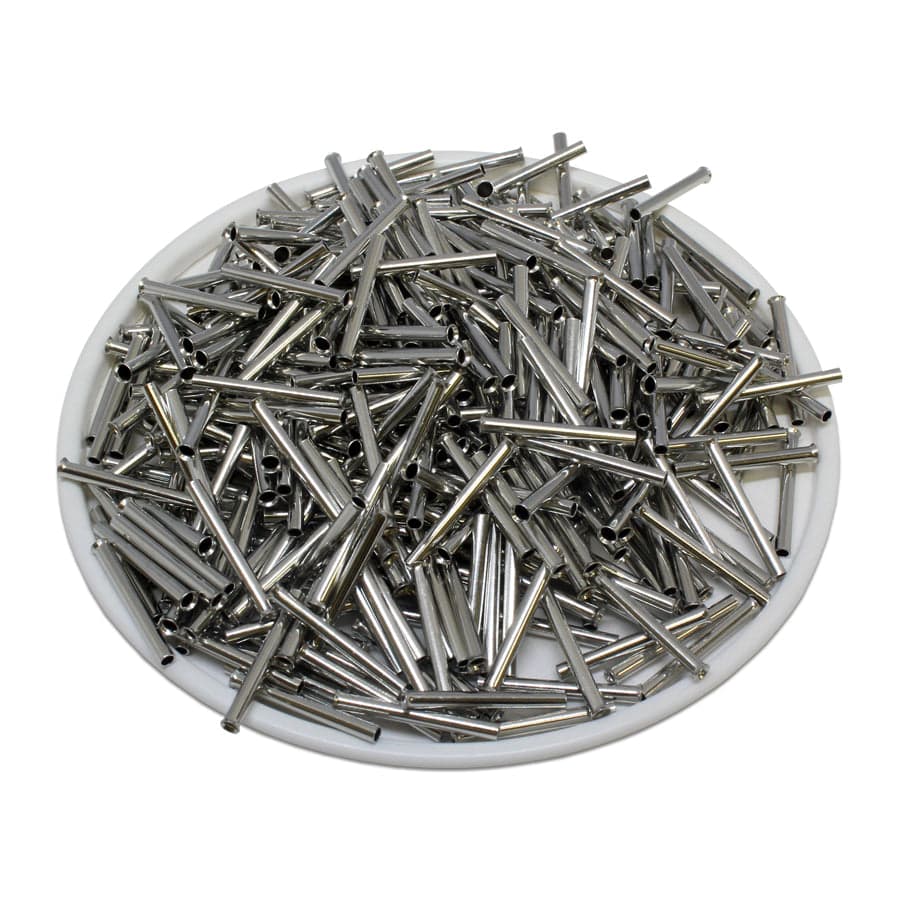

N07515 - 20 AWG (15mm Pin) Non Insulated Ferrules

Precio original $13.62 - Precio original $13.62
Precio original
$13.62
$13.62 - $13.62
Precio actual $13.62
SKU N07515
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 1000 Pieces

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.


Dimensions & Features:

Wire Range: 20 AWG (0.75mm2)
Material: Tin-Plated Copper
L1: 15mm (0.59")
D: 1.5mm (0.05")
D1: 1.2mm (0.04")
D2: 1.9mm (0.07")
Max Electrical Rating: Up to 2000V
Max Electrical Current: 17A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes



Technical Drawing:


Cross References

Cross Reference Parts:
Greenlee: 71/15VZ
