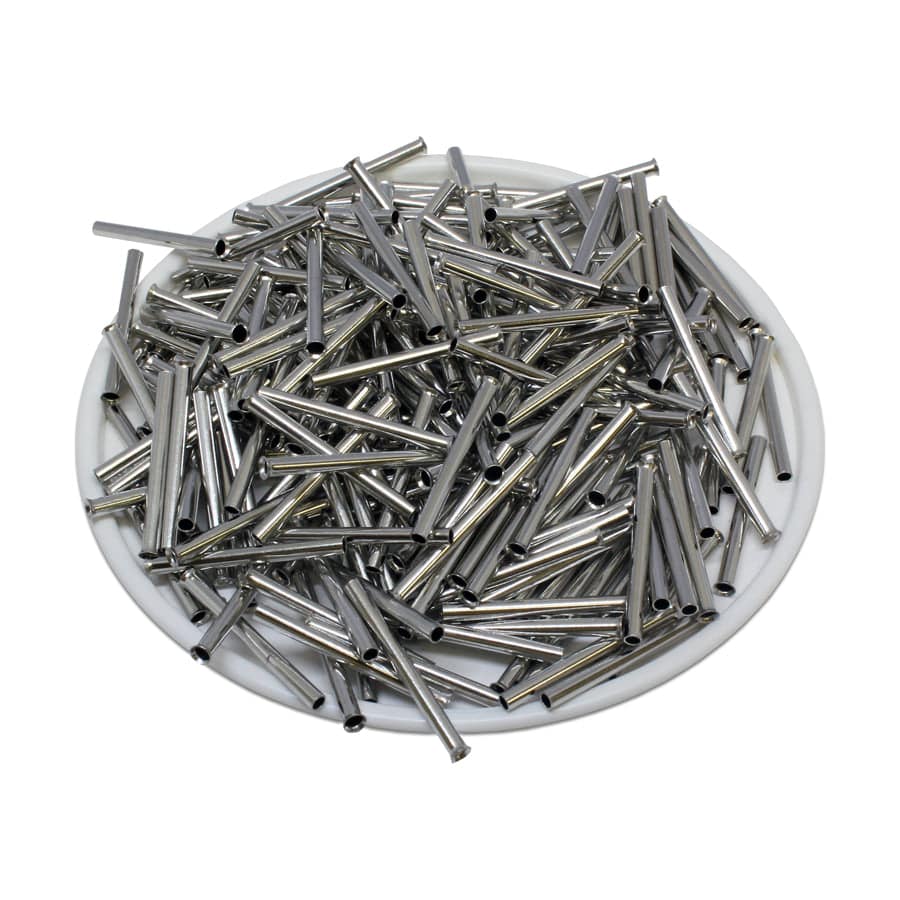

N10020 - 18AWG (20mm Pin) Non Insulated Ferrules
Precio original
$16.02
-
Precio original
$16.02
Precio original
$16.02
$16.02
-
$16.02
Precio actual
$16.02
SKU N10020
Disponibilidad:
en stock, listo para ser enviado
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Range: | 18 AWG (1.00mm2) |
| Material: | Tin-Plated Copper |
| L1: | 20mm (0.78") |
| D: | 1.7mm (0.06") |
| D1: | 1.4mm (0.05") |
| D2 | 2.5mm (0.09") |
| Max Electrical Rating: | Up to 2000V |
| Max Electrical Current: | 18A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross References:ABB: XUSG01963
