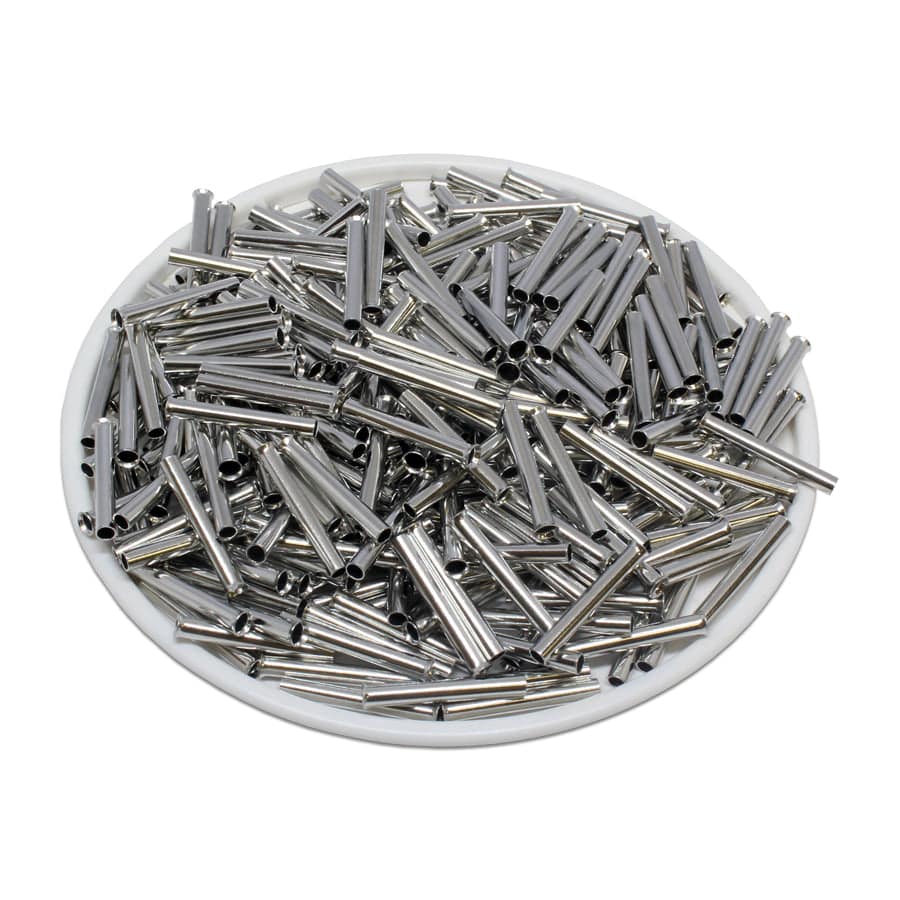

N15015 - 16AWG (15mm Pin) Non Insulated Ferrules

Precio original $0.00 - Precio original $14.90
Precio original
$14.90
$0.00 - $14.90
Precio actual $14.90
SKU N15015
Disponibilidad:
en stock, listo para ser enviado
Disponibilidad:
Agotado
Piece Quantity: 1000 Pieces

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.


Dimensions & Features:

Wire Range: 16 AWG (1.50mm2)
Material: Tin-Plated Copper
L1: 15mm (0.59")
D: 2mm (0.08")
D1: 1.7mm (0.06")
D2 2.5mm (0.09")
Max Electrical Rating: Up to 2000V
Max Electrical Current: 18A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:


Cross References

Cross References:

ABB: XUSG01965
American Electrical: 121510150
Greenlee: 72/15VZ
McMaster-Carr: 9681K59
Panduit: 9681K59
Phoenix Contact: 3202591
