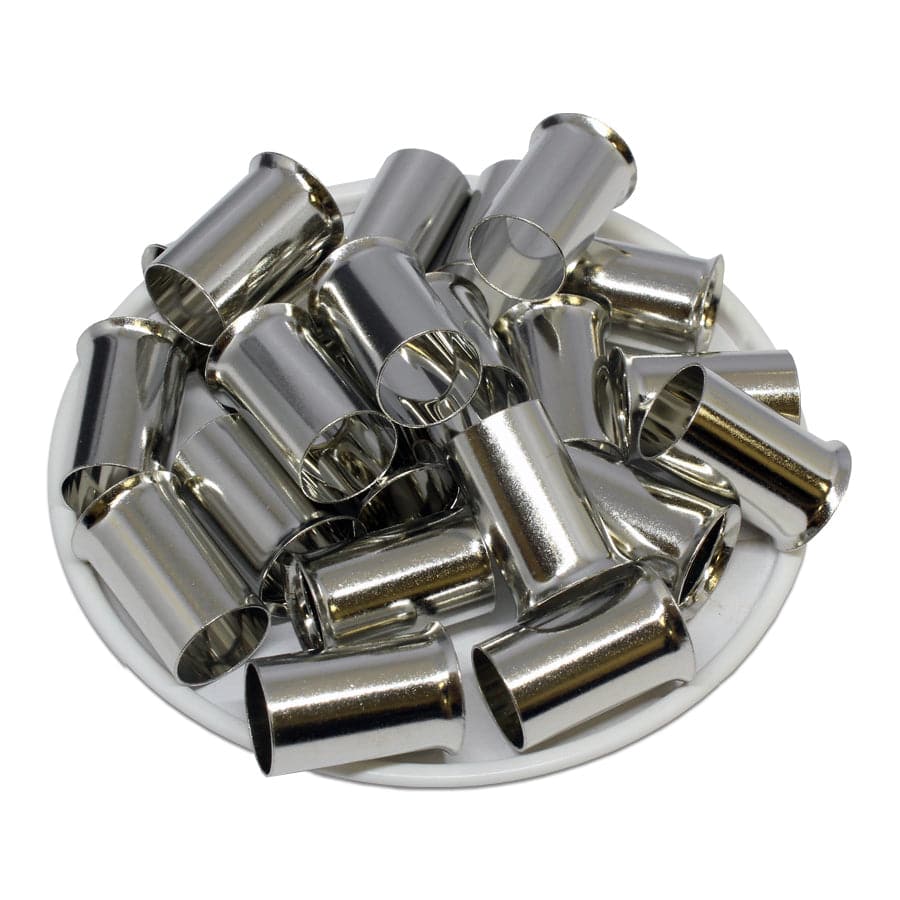

N500018 - 1 AWG (18mm Pin) Non Insulated Ferrules

Precio original $0.00 - Precio original $9.18
Precio original
$9.18
$0.00 - $9.18
Precio actual $9.18
SKU N500018
Disponibilidad:
en stock, listo para ser enviado
Disponibilidad:
Agotado
Piece Quantity: 50 Pieces

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.


Dimensions & Features:

Wire Range: 1-1/0 AWG (50.00mm2)
Material: Tin-Plated Copper
L1: 18mm (0.71")
D: 10.8mm (0.42")
D1: 10.2mm (0.40")
D2 12.7mm (0.50")
Max Electrical Rating: Up to 2000V
Max Electrical Current: 195A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes



Technical Drawing:


Cross References

Cross References:

ABB: XUSG02004
American Eclipse: 1218150
Burndy Hubbell: 10097805 YF0118UI
Crimp Supply: 13A12015
Eclipse: 701-080
Elecdirect: FERN-1/0-18C
Greenlee: 80/18VZ
Panduit: F87-18-C
Thomas Betts: F9037
Weidmuller: 9004210000
ZF: V3AE9086

Documents

Click to view product spec sheet:
