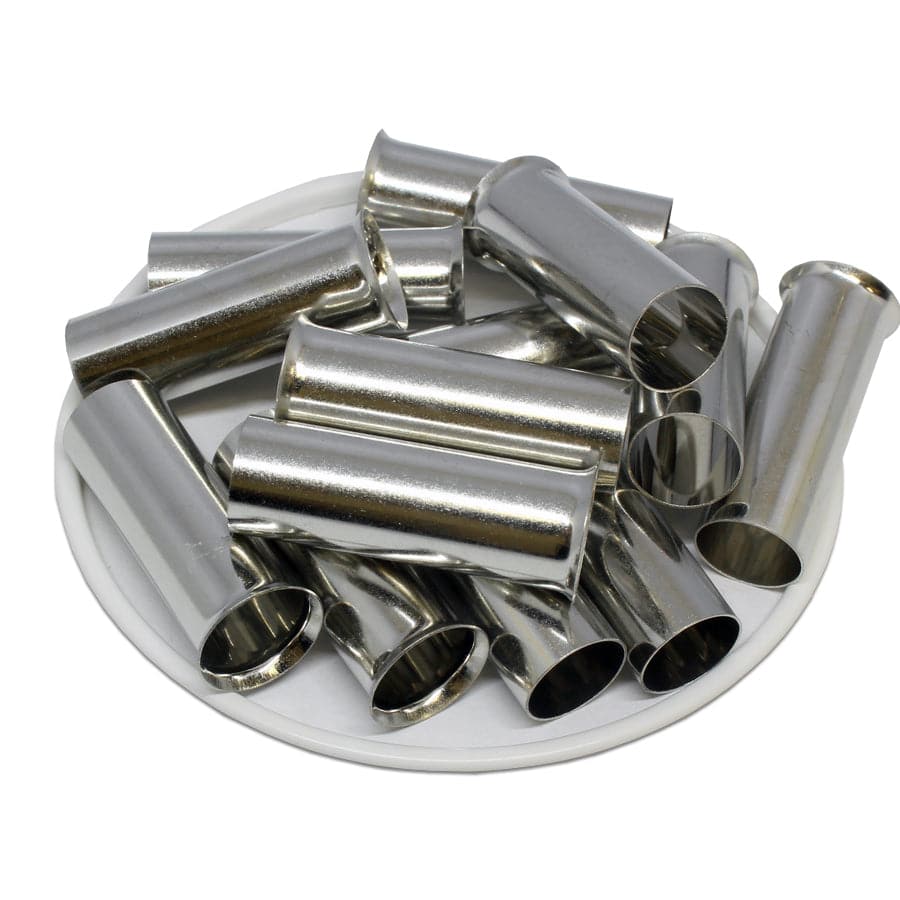

N500032 - 1 AWG (32mm Pin) Non Insulated Ferrules

Precio original $0.00 - Precio original $12.42
Precio original
$12.42
$0.00 - $12.42
Precio actual $12.42
SKU N500032
Disponibilidad:
en stock, listo para ser enviado
Disponibilidad:
Agotado
Piece Quantity: 50 Pieces

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.


Dimensions & Features:

Wire Range: 1-1/0 AWG (50.00mm2)
Material: Tin-Plated Copper
L1: 32mm (1.26")
D: 10.8mm (0.42")
D1: 10.2mm (0.40")
D2 12.7mm (0.50")
Max Electrical Rating: Up to 2000V
Max Electrical Current: 195A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes



Technical Drawing:


Cross References

Cross References:

ABB: XUSG02009
Altech Corp: 2816.0
American Electrical: 1232150
Burndy Hubbell: 10097808 YF0132UI
Eclipse: 701-082
Panduit: F87-32-C
Weidmuller: 9004220000
ZF: V3AE9088
