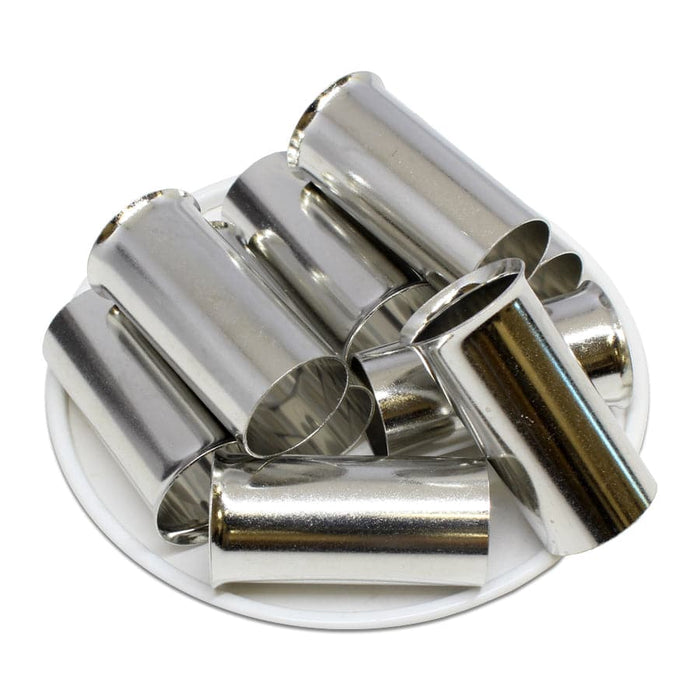

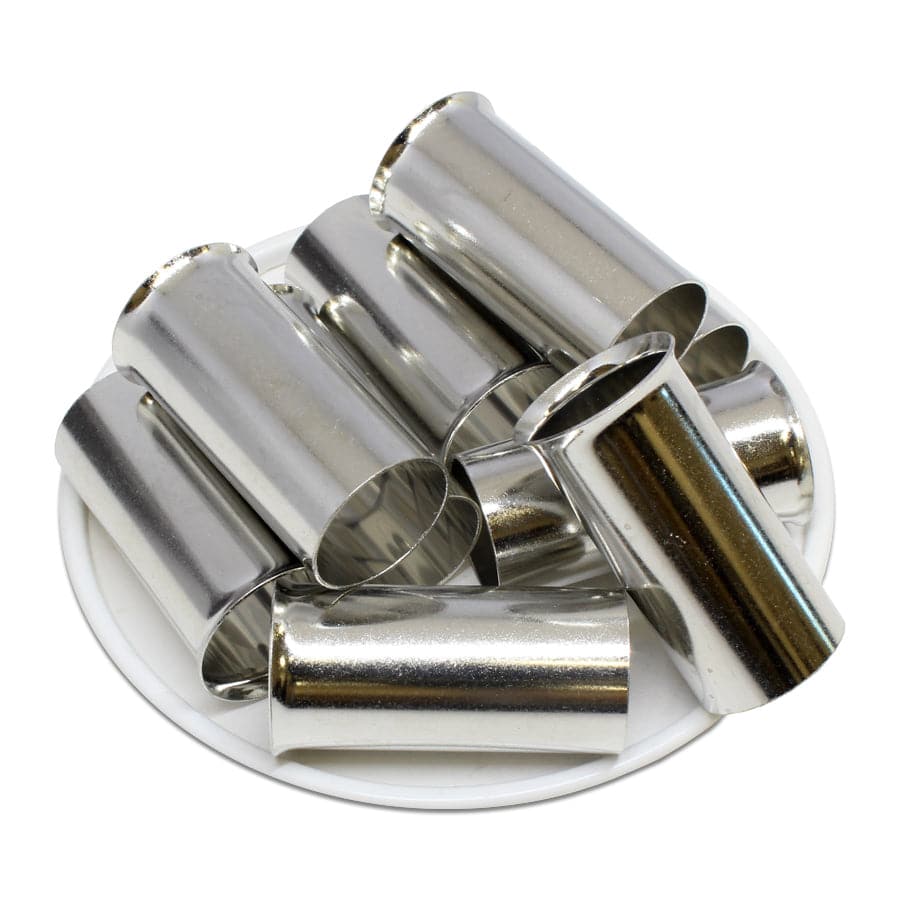

N950032 - 3/0 AWG (32mm Pin) Non Insulated Ferrules

Precio original $32.75 - Precio original $32.75
Precio original
$32.75 - $32.75
Precio actual $32.75
SKU N950032
en stock, listo para ser enviado
Piece Quantity: 50 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 3/0 AWG
L1: 32mm (1.26")
D: 15.2mm (0.6")
D1: 14.5mm (0.57")
D2: 17.3mm (0.68")
Material: Tin Plated Copper
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes
Max Electrical Rating: Up to 2000V
Max Electrical Current: 200A

Product Drawing:

Cross References

Cross Reference Parts:
ABB: XUSG02015
Altech Corp: 2791
American Electrical: 1232195
Burndy Hubbell: 10097814 YF3/032UI
Greenlee: 82/32VZ
Panduit: F90-32-L
Thomas Betts: F9044
Weidmuller: 9004260000
ZF: V3AE9092


Click to view product spec sheet:
