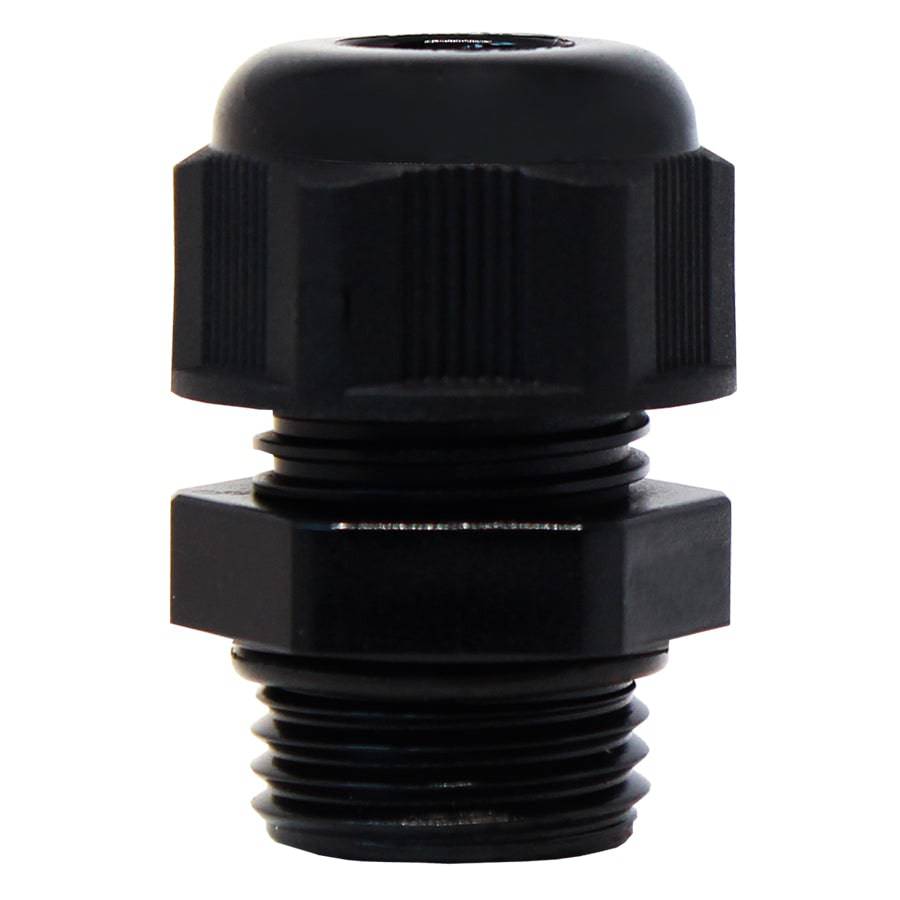

PG9 Thread Nylon Cable Gland, Black, Range: 3/16" to 5/16", UL Recognized, IP68 - PG0908B

Agotado
Precio original $0.54 - Precio original $0.54
Precio original
$0.54
$0.54 - $0.54
Precio actual $0.54
SKU PG0908B
Disponibilidad:
Agotado
Pack Quantity: 1 Piece

NYLON CABLE GLANDS: PG THREAD

PG (Panzer-Gewinde) cable glands are useful when creating water-tight pass-throughs for cables. They protect and secure cables through their internal seals. Ferrules Direct offers a wide range of PG sizes in a variety of materials and colors. These glands are easy to use and built to handle tough conditions.

  • Lock-nut Included
  • Inner Gland Cable Seal Included
  • O-Ring Included ✓
  • UL Recognized ✓
  • IP68 Rating ✓

Formerly sold as part #:PG0908BK.


DIMENSIONS & FEATURES:

Thread Size: PG9
Cable Range: 3/16" to 5/16" (4-8mm)
Color: Black
Material: Nylon 6/6 (Polyamide)
C1: 15.2mm (0.60")
C2: 9.5mm (0.37")
D2: 8.2mm (0.32")
B1: 8.2mm (0.32")
L1: 8.0mm (0.31")
L2: 19mm (0.75")
L3: 12.9mm (0.51")
Flammability Rating: UL 94 V-2
Ingress Protection: IP68
Hermetic Seal: NBR (Nitrile Rubber)
O-Ring: EPDM
Working Temperature: -40°F to 221°F (-40°C to 105°C)
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

PRODUCT DRAWING:

ADDITIONAL INFO:

A cable gland (more often known in the U.S. as a cord grip, cable strain relief, cable connector or cable fitting) is a device designed to attach and secure the end of an electrical cable to the equipment. A cable gland provides strain-relief and connects by a means suitable for the type and description of cable for which it is designed—including provision for making electrical connection to the armor or braid and lead or aluminum sheath of the cable, if any. Cable glands may also be used for sealing cables passing through bulkheads or gland plates. Cable glands are mostly used for cables with diameters between 1 mm and 75 mm.
