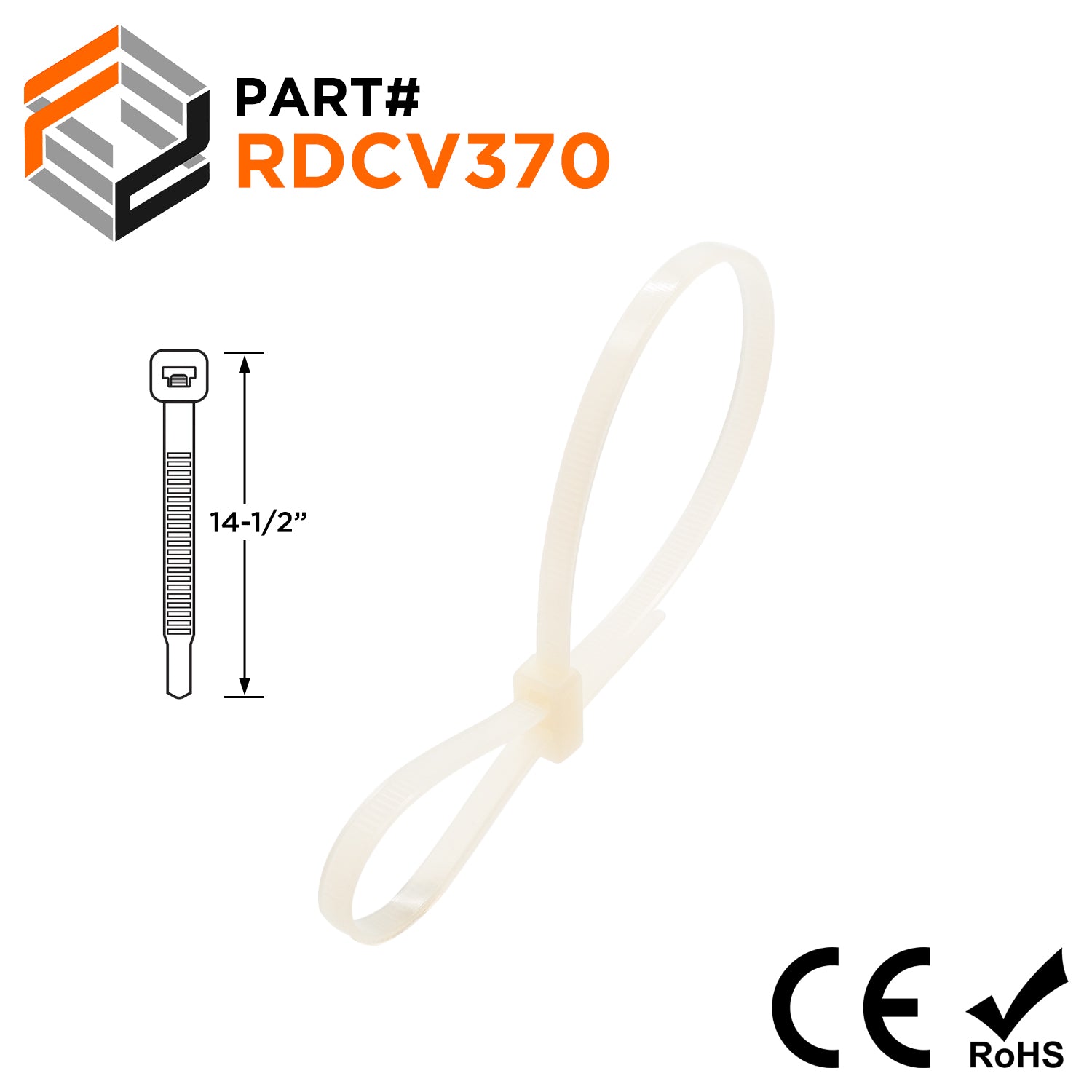

RDCV370 - Releasable Nylon Double Head Cable Tie
Precio original
$10.98
-
Precio original
$10.98
Precio original
$10.98
$10.98
-
$10.98
Precio actual
$10.98
SKU RDCV370
Disponibilidad:
en stock, listo para ser enviado

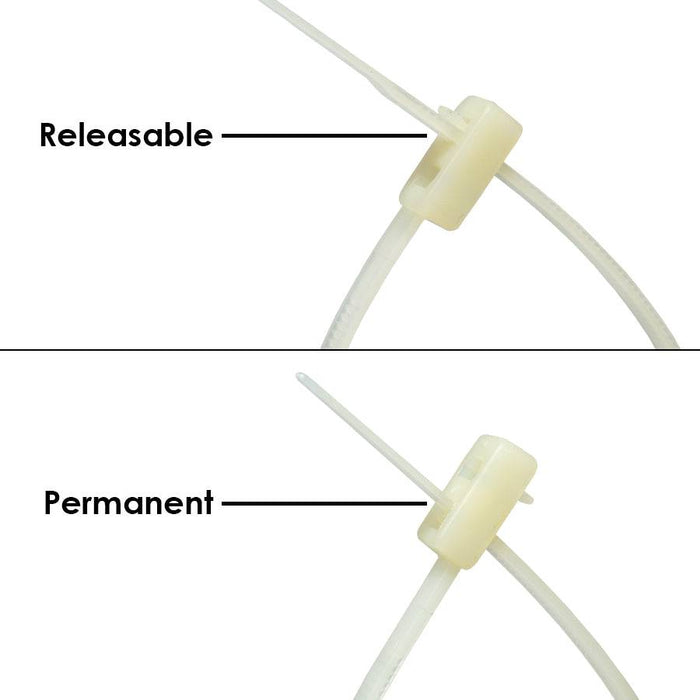

Releasable Double Head cable ties can be used to bundle and/or secure any number of things as a general use fastener. The top slot on the head of the cable tie is releasable, simply lift up the tab to unlock and release. The bottom slot is a non-releasable/permanent fastening.
Dimensions & Features:
Technical Drawing:
None
Dimensions & Features:
| Length: | 370mm (14.6") |
| Width: | 4.8mm (0.19") |
| D1: | Min 2.5mm - Max 105mm |
| D2: | Min 2mm - Max 98mm |
| Color: | Natural |
| Max Tensile Strength: | 50lbs (22kg) |
| Material: | UL Approved 94UV-2 Nylon 6/6 |
| Service Temperature: | -40°F to 185°F (-40°C to 85°C) |
| Gamma Resistance: | 1x10 Rads |
| UL Approved: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:None
