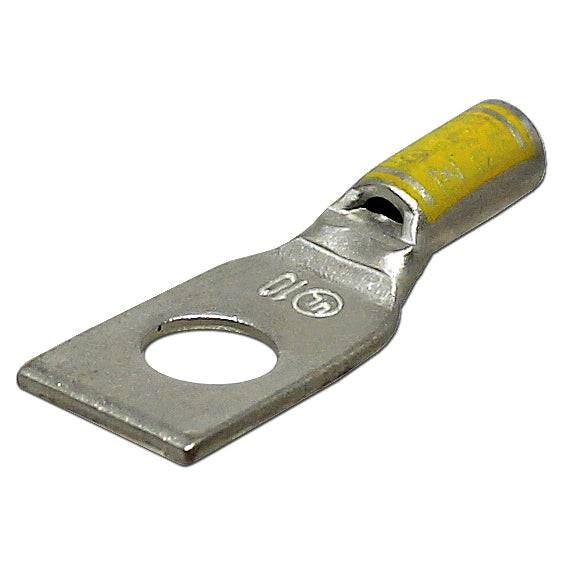

SB1010 - 10 AWG Compression Lug - #10 Stud Size - SB1010

Precio original $0.40 - Precio original $0.40
Precio original
$0.40
$0.40 - $0.40
Precio actual $0.40
SKU SB1010
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 10 AWG
Stud Size: #10 Stud
Color: Yellow
L: 28.6mm (1.13")
L1: 15.2mm (0.60")
D: 8.1mm (0.32")
D1: 5.6mm (0.22")
D2: 3.3mm (0.13")
B: 10.1mm (0.40")
E: 5.6mm (0.22")
F: 1.9mm (0.08")
Material: Tin Plated Copper
Temperature Rating: 90°C
Max Electrical Rating: 35 KV
Max Electrical Current: 50A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None
