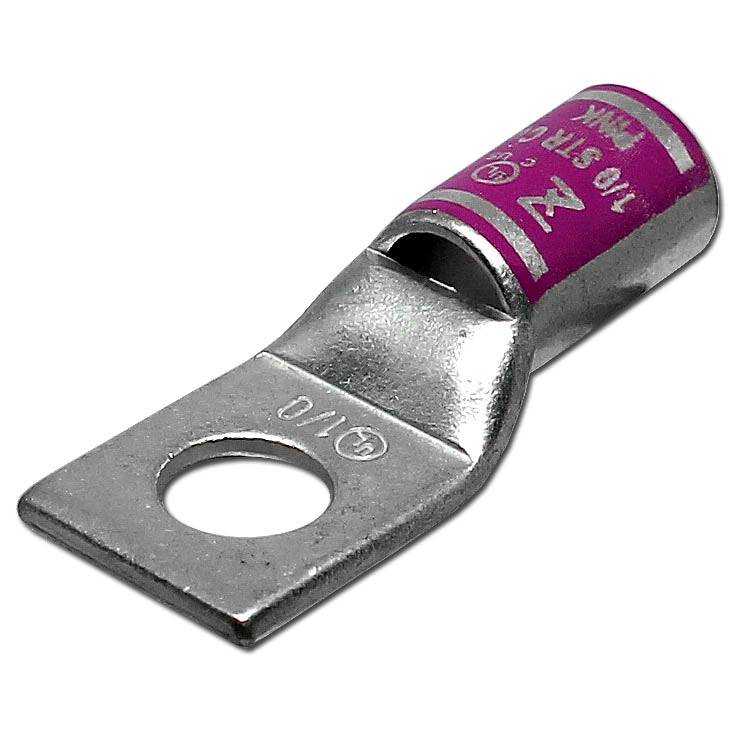

SB10516 - 1/0 AWG Compression Lug - 5/16" Stud Size
Precio original
$1.93
-
Precio original
$1.93
Precio original
$1.93
$1.93
-
$1.93
Precio actual
$1.93
SKU SB10516
Disponibilidad:
en stock, listo para ser enviado
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None
Click to view product spec sheet:
Dimensions & Features:
Wire Size: | 1/0 AWG |
Stud Size: | 5/16" Stud |
Color: | Pink |
L: | 45.7mm (1.80") |
L1: | 19.1mm (0.80") |
D: | 18.4mm (0.70") |
D1: | 13.0mm (0.50") |
D2: | 10.2mm (0.40") |
B: | 20.3mm (0.80") |
E: | 8.8mm (0.30") |
F: | 2.7mm (0.10") |
Material: | Tin Plated Copper |
Temperature Rating: | 90°C |
Voltage Rating: | 35 KV |
Maximum Amp Rating: |
230A |
UL Approved: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
